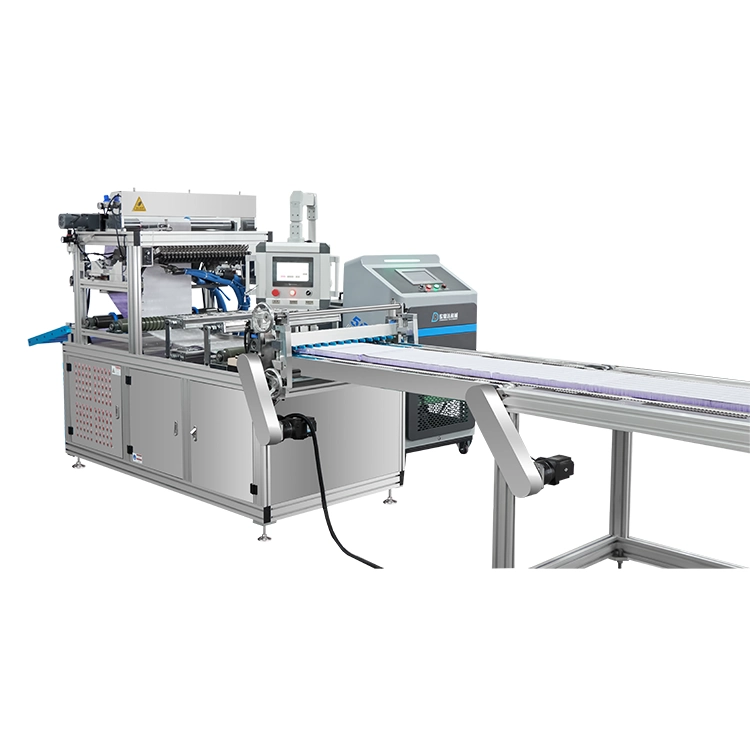

Jundingda, a renowned supplier, manufactures the Car Air Filter Making Machine, an innovative piece of equipment designed for the efficient and precise production of air filters used in vehicles. This machine incorporates various functions such as pleating, gluing, and cutting to optimize the manufacturing process and ensure superior quality filters.
|
Working Speed |
Adjustable |
|
Maximum Filter Material Passing Width |
730mm |
|
Widest Product Width |
700mm |
|
Product Folding Height Range |
10~100mm |
|
Production Efficiency |
4~25m/min |
|
Total Machine Power |
21.59kW |
|
Total Motor Power |
1.59kW |
|
Filter Material Conveying and Receiving Motor |
Servo motor, 0.75kW |
|
Forming Conveying Motor |
Servo motor, 0.75kW |
|
Slitting Motor |
Micro motor, 90W |
|
Glue Machine Power |
20kW |
|
Glue Strip Spacing |
25.4mm |
|
Number of Glue Strips |
2×25 (50 strips) |
|
Air Source Pressure |
0.6MPa |
|
Power Supply Voltage |
380V/50Hz |
|
Glue Machine Model |
Domestic Jundingda XD-Z50L |
Technical Parameters of XDPP-700-II Fully Automatic PP Intermittent Gluing Production Line:
Mainframe Dimensions (L×W×H): 5000mm × 1300mm × 1720mm
Glue Machine Dimensions (L×W×H): 850mm × 800mm × 1165mm
