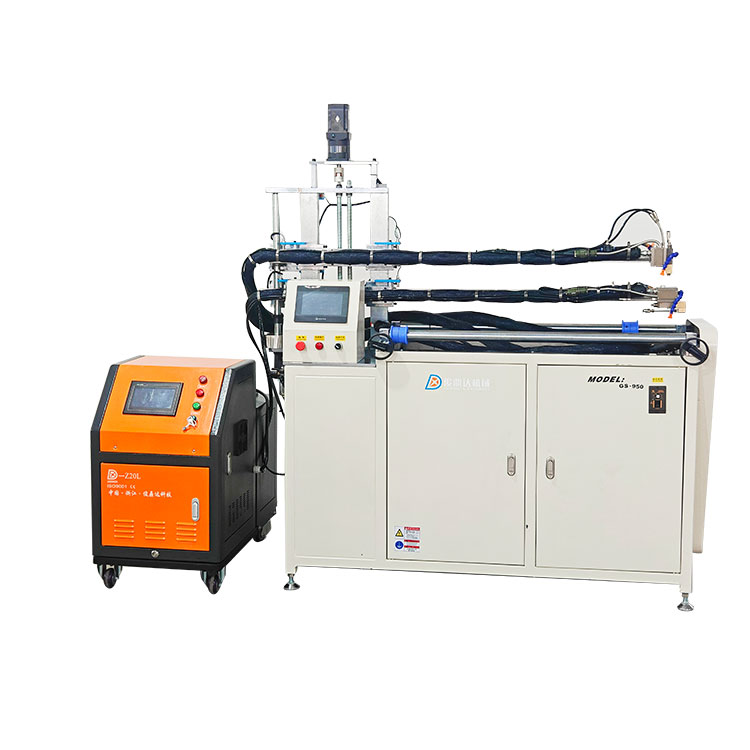

The Jundingda Machinery HDAF Filter Gluing Machine is ideal for use in industries such as automotive, HVAC, and air purification, where precision and efficiency in filter assembly are critical.
With the HDAF Filter Gluing Machine, manufacturers can achieve superior results, reduce production costs, and maintain high standards in filter performance.
1. Decoiler
2. Driver of upper glue gun
3. Driver of lower glue gun
4. Computer control cabinet
5. Hot melt applicator II.
1. Capability: 3-5pcs/min
2. Air filter length≤950mm
3. Air filter diameter≥Φ100-500mm
4. Power supply of main machine: 220V/50HZ
5. Air pressure: 0.6MPa
6. Hot melt applicator power supply voltage 380V/50HZ : 380V/50HZ
7. Hot melt adhesive machine capacity: 10kg hot melt capacity 10KG
8. Hot melt adhesive machine heating power 6kw hot melt hearing power: 6kw
9. Power of the main machine: 1KW
10. Machine weight: 450KG M/C weight 450KG
11. Glue machine size: 600*780*1325 L*W*H hot melt application size
600*780*1325 L*W*H
Main machine size: 2700*500*1555 (L*W*H) main machine size 2700*500*1555 L*W*H
1. The inner and outer mesh is well posited together with paper by the hot melt. And the paper is in tucked even under big air pressure.
2. The filter gulled with hot melt will prevent the resistance from increasing by being no space between two pleats when filter paper pressured.
3. The pitch of the machine can be adjustable according to the size of the filters through the PLC computer control system. The hot melt can be glued both in from of straight and spiral.
4. The inner and outer circle can be glued both or independently with the electrical adjusted,.
5. This machine can be operated both automatically and manually.
This type of machine is used for gluing the hot melt on the inner and outer surface of the heavy duty air filter.
