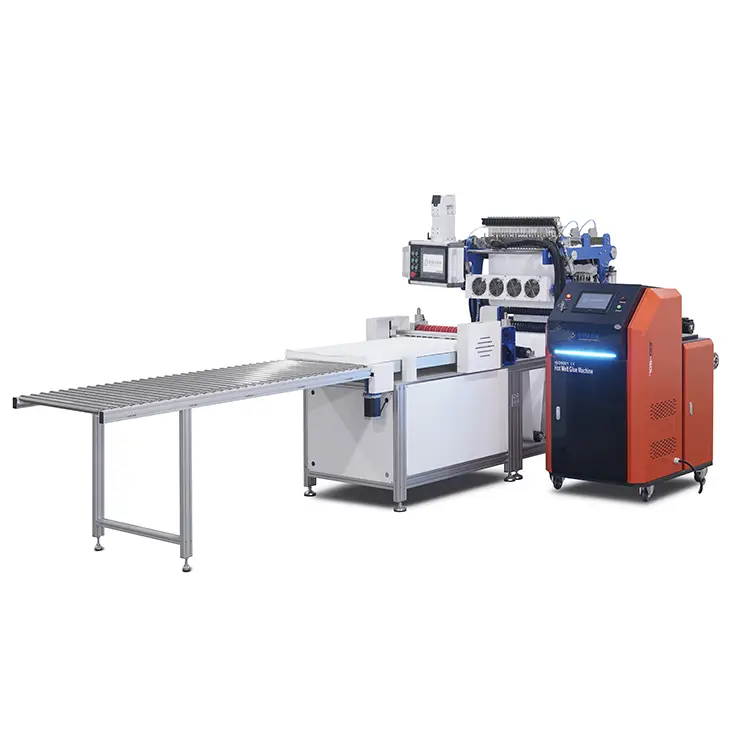

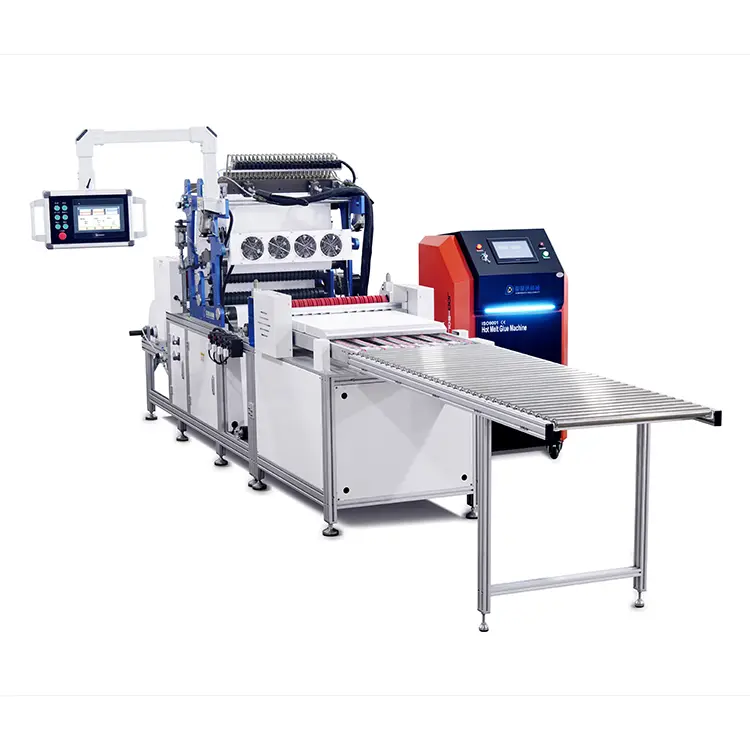

Fiberglass Synthetic Media Filter Production Line

Production Specifications：

1. Working Width：≤680mm

2. Pleating Height：17~120mm

3. Maximum material roll diameter：≤900mm

4. Production Speed：5-15M/min

5. Power：15KW  380V

6. Air pressure：0.6-0.8Mpa

7. Machine Weight：1500kg

8. Size：7500mmX1500mmX1900mm（LxWxH）

Feeding part:

1. Pneumatic feeding.

2. Material shaft inflatable positioning tensioning.

3. Automatic magnetic powder tension system (according to the different size of the material roll to achieve automatic tension adjustment).

4. Increase the lack of material alarm function.

5. Including chemical fibre material dispensing tension system.

Paper folding mechanism:

1. creasing adjustment: manual adjustment (with precision dial, more stable than the pneumatic mechanism).

2. double indentation knife configuration: double servo paper folding knife roller (according to the German TAG similar products mechanism design, long life indentation knife roller group maintenance-free).

3. the indentation knife by the whole process of five-axis machining centre overall carving and grinding, surface hardening hard chrome plating treatment, more wear-resistant, indentation of the rubber shaft using the whole polyurethane rubber shaft for long time without wear and tear without replacement.

4. servo system: Taiwan's TECO

5. pressure knife: 2 sets

Spray glue Part:

1. Slitting: 4 groups of pneumatic slitting (air pressure adjustable), manual adjustment, slitting shaft quenching and hardening Processing.

2. Glue shaft: surface anti-adhesion Teflon treatment.

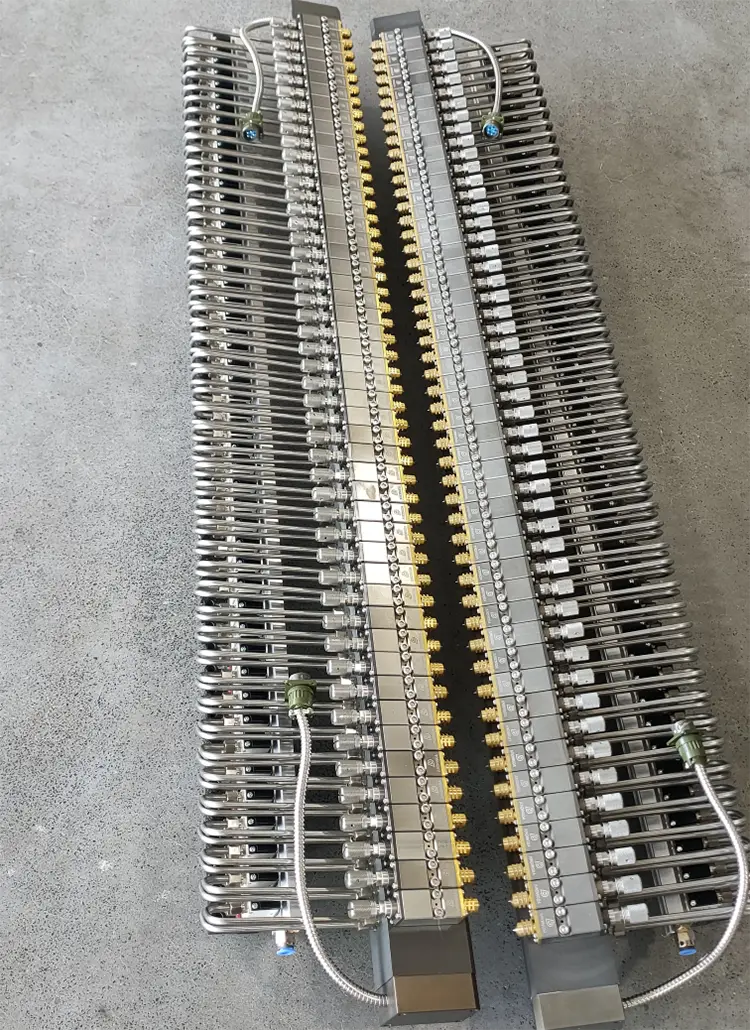

3. Spraying spacing: 25.4mm * 26* 2 groups of vertical spraying up and down (each touch screen separate control)

(Each touch screen is controlled individually).

4. Control mode: Continuous spraying, breaking glue, intermittent spraying, interval spraying.

5. Cooling system: four groups of large air volume cooling fan (digital display to adjust the air volume more intuitive and accurate).

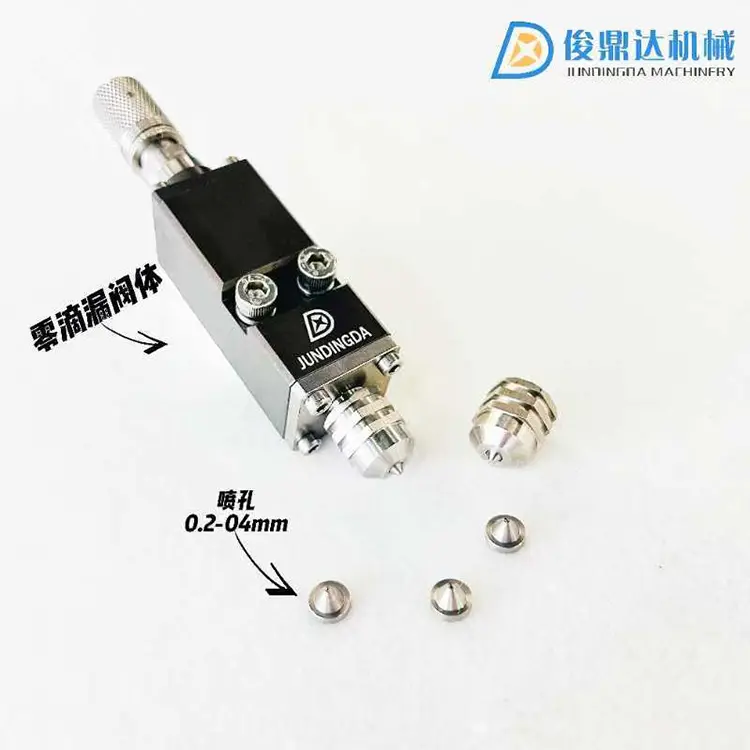

6. Spray gun mode: up and down vertical spray glue, pneumatic in and out.

7. Slitting axis: independent servo drive (slitting more stable).

8. Increase the paper break detection automatic stop function.

Folding Part:

1. Folding height: touch screen input Taiwan TECO servo motor control automatic adjustment.

2. Conveyor mode: continuous, inching (Taiwan TECO servo motor control more accurate).

3. Conveyor belt: polyurethane synchronous belt (not easy to slip not easy to break).

4. Cooling: equipped with 2 metres long non-powered cooling roller.

The whole machine:

1. the main frame adopts 4080 thickened industrial aluminium profile

2. the whole machine sheet metal using 1.5mm processing cold pressed plate plastic spraying

3. the whole machine electrical appliances: servo system--Inovance, PLC--Japan Panasonic , low-voltage electric appliances--Schneider.

4. Pneumatic: Airtac(Taiwan)

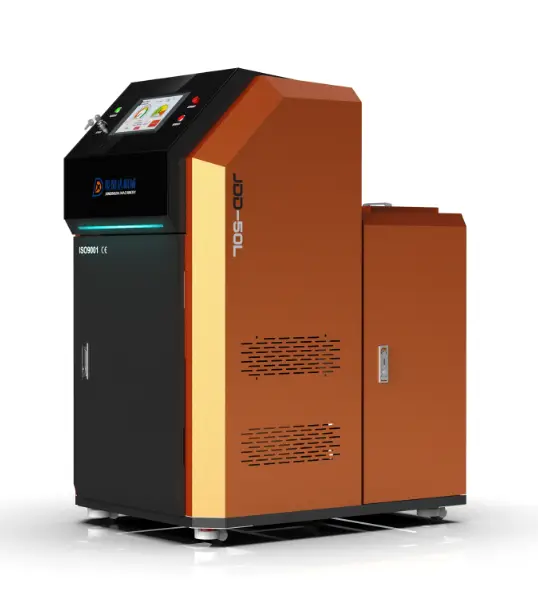

Hot melt glue machine specifications
