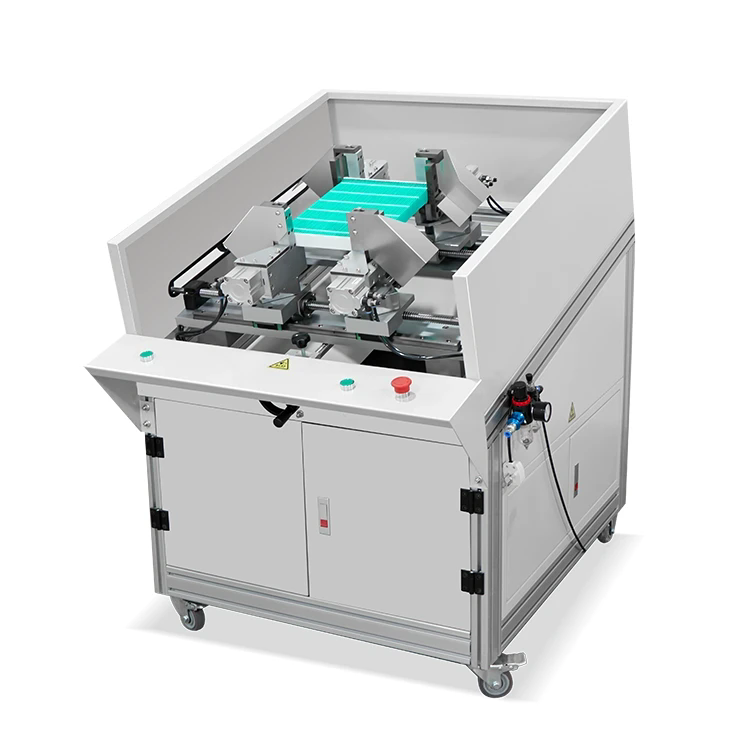

A Filter Trimming Machine is specialized equipment designed for shaping, trimming, and refining filter elements across industries such as automotive, environmental protection, industrial manufacturing, household appliances, and medical filtration. As filtration standards become more demanding, manufacturers require highly consistent, automated, and precise trimming technologies to ensure uniformity, safety, and efficiency.
A modern Filter Trimming Machine integrates mechanical precision, digital control, and advanced automation to perform highly accurate trimming on filter cartridges, filter rods, pleated filters, and cylindrical filtration components. Its functions focus on accuracy, efficiency, and consistency:
Consistent edge trimming for round, square, or customized filter shapes
Automatic feeding and cutting, reducing dependence on manual labor
High-speed trimming with minimal material deviation
Accurate diameter control ensuring tight tolerances
Continuous operation capability for industrial-scale production
Safety systems preventing operational hazards
Compatibility with diverse filter materials, including paper, nonwoven fabrics, melt-blown media, and composite layers
To provide a clear professional overview, the following table summarizes typical parameters of a high-grade Filter Trimming Machine:
| Parameter | Specification Range | Description |
|---|---|---|
| Cutting Diameter | 20–120 mm (customizable) | Supports various cartridge sizes |
| Trimming Speed | 30–80 pcs/min | Depending on material and thickness |
| Power Supply | 220V / 380V | Industrial-grade electrical support |
| Control System | PLC + Touchscreen | Digital precision control |
| Blade Material | High-carbon steel / Tungsten alloy | Ensures sharp, stable cutting |
| Tolerance Accuracy | ±0.1–0.3 mm | Suitable for high-precision filters |
| Machine Size | Customized | Tailored to production line layouts |
| Material Compatibility | Paper, Nonwoven, Melt-Blown, Composite Filters | Multi-industry usage |
| Feeding Method | Automatic | Stable continuous output |
| Safety Protection | Emergency stop + Sensor monitoring | Ensures operator protection |
As industries raise filtration standards—whether for cleaner automotive emissions, safer medical devices, or more efficient HVAC systems—there is a growing demand for filtration components with strict dimensional accuracy and uniform appearance. A trimming deviation as small as 0.3 mm can affect sealing performance, airflow, and filtration efficiency. This makes advanced trimming systems indispensable.
Manufacturers seek shorter lead times, consistent quality, and lower costs. Automated trimming machines eliminate the variable quality associated with manual cutting while enabling 24-hour production cycles. Automation reduces waste, increases yield, and lowers long-term labor costs.
Manual trimming exposes workers to repetitive motions, flying debris, and blade-related risks. A professional Filter Trimming Machine integrates dust collection systems, protective housings, and emergency-stop capabilities, ensuring a safer production environment while reducing airborne particles and waste material.
Large-scale filter manufacturers cannot tolerate inconsistencies that may compromise product performance. A trimming machine ensures every filter cartridge or element meets the same standard, preventing defects that could lead to product recalls or operational failures.
A typical trimming cycle involves:
Automatic Loading – Filters are positioned accurately by mechanical feeder arms.
Diameter Calibration – Sensors evaluate size before trimming begins.
Precision Cutting – High-speed rotary blades trim the edges with consistent force.
Debris Extraction – Dust and waste are immediately removed.
Automated Discharge – Finished products are sorted and collected.
This entire process happens within seconds, allowing for large-scale continuous trimming.
Manual trimming suffers from:
Uneven edges
Dimensional variations
Slower output
Higher scrap rates
Automation eliminates these issues with stable parameters and repeatable processes.
Different sectors require special filter shapes and tolerances:
Automotive: tight sealing requires ±0.1 mm accuracy
Medical: sterile, precise trimming with zero material contamination
HVAC: high output speed with consistent frame finishing
Industrial Filtration: ability to handle thicker materials
High-end trimming machines can be tailored for each requirement.
By minimizing material waste and increasing speed, the cost per trimmed filter decreases significantly. Over a year of production, this translates into improved profit margins.
Future trimming machines will integrate:
Real-time inspection systems
Automated tolerance adjustments
Predictive maintenance via data analytics
Smart sensors analyzing blade wear and material thickness
These upgrades ensure uninterrupted and stable production.
Eco-friendly production systems reduce waste via:
Precision blade design minimizing offcuts
Recycling-friendly dust collection
Energy-efficient motors
Sustainability is becoming a global trend, especially in filtration industries serving environmental and health markets.
Manufacturers increasingly demand machines that can trim multiple filter sizes on the same line. Modular tooling enables quick size changes, increasing flexibility in factories producing diversified filter models.
Future trimming machines will seamlessly connect with:
Filter winding machines
Gluing systems
Filter pleating machines
Final packaging systems
This full-line integration transforms production efficiency and reduces manual intervention.
Q1: What type of filters can the machine trim?
A Filter Trimming Machine can process cylindrical, pleated, paper, nonwoven, melt-blown, and composite filters. It supports multiple diameters, allowing it to serve automotive, industrial, environmental, and household filtration industries.
Q2: How is trimming accuracy maintained during continuous high-speed operation?
Precision is achieved through sensor-based calibration, PLC control systems, and high-strength blades. Real-time monitoring ensures that each filter maintains consistent dimensions even during extended 24-hour production cycles.
The Filter Trimming Machine plays a crucial role in modern filtration manufacturing, offering unmatched precision, automation, and production efficiency. As global industries continue to demand higher-quality filtration components, trimming technology is becoming more advanced, integrating intelligent controls, sustainable systems, and customizable configurations. These developments support stable mass production and help businesses maintain a competitive edge in the filtration market.
Among the leading manufacturers in this field, Jundingda provides advanced trimming solutions tailored to diverse industrial needs. For more information or customized configuration support, contact us to learn how Jundingda can enhance your production line and meet future filtration standards.
