Microfiber Spray Gun

The Microfiber Spray Gun is a specialized tool designed to provide a fine and even spray of liquids or coatings, using advanced microfiber technology for improved coverage and finish. Ideal for delicate applications that require precise control and smooth results, this spray gun ensures high-quality performance with minimal overspray. It is especially effective for applying paint, adhesives, and coatings to surfaces that demand a fine, uniform layer.

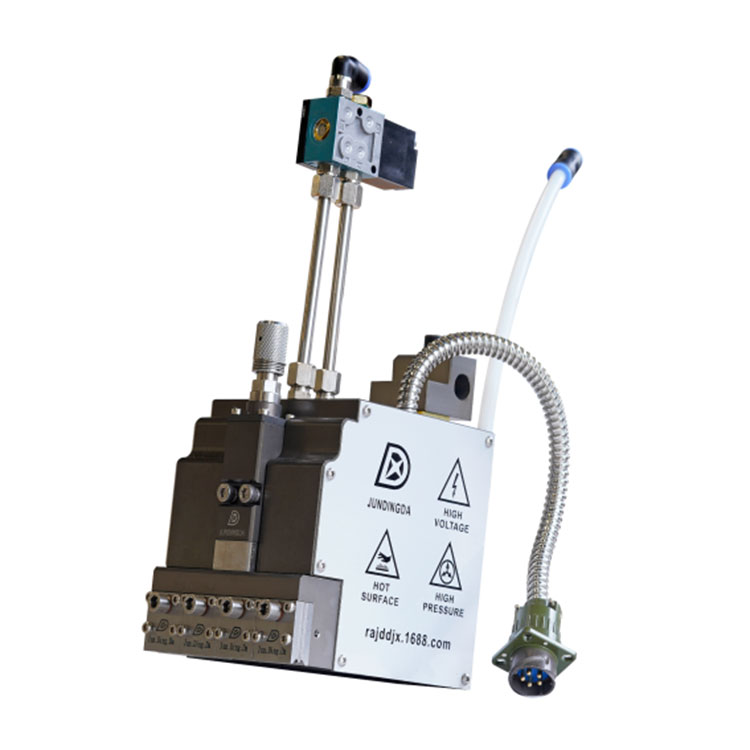

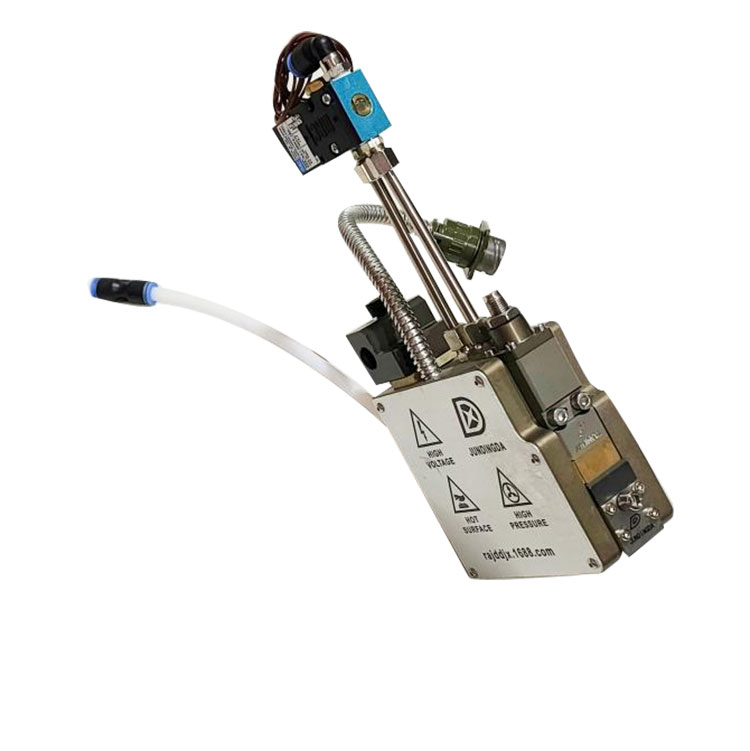

25mm Microfiber Spray Gun

Model：XD-25XW

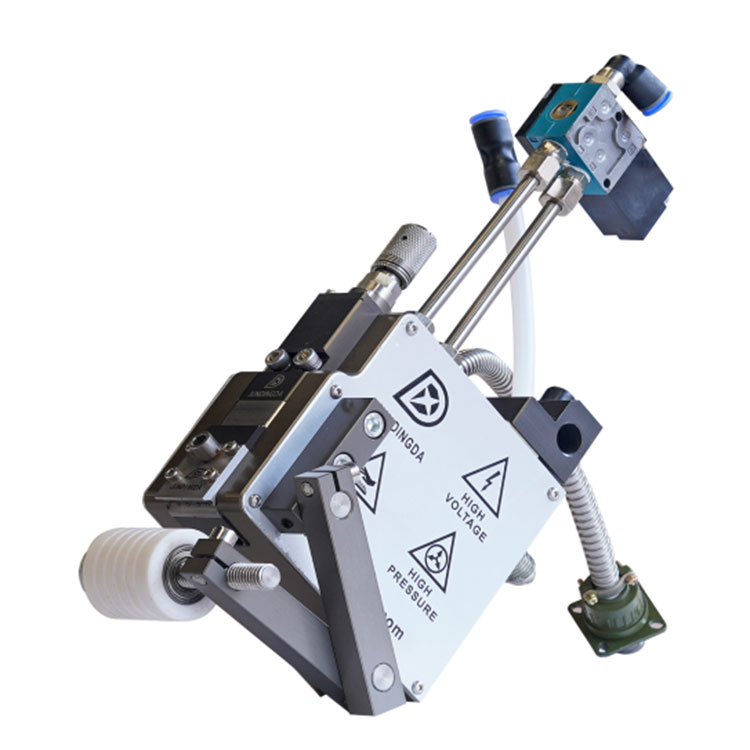

25mm rubber band spray gun with guide wheel	25mm small fiber spray gun

1. 25mm Microfiber Spray Gun and 25mm Microfiber Spray Gun are optional

2. Working power supply AC220V, power 500W, sensor K type, pt100, nickel 120 are optional

3. Working air pressure 0.6mpa, nozzle air circulation heating atomization effect is good (atomization air pressure 0.15mpa)

4. Guide wheel is optional, suitable for 25mm spray glue or diaper rubber spray glue, etc.

5. Spray glue width 5-25mm, adopts full-surround insulation structure design, suitable for a wider temperature range and a variety of glue spraying applications

6. 120 mesh precision filtration system filters impurities in the glue to reduce clogging

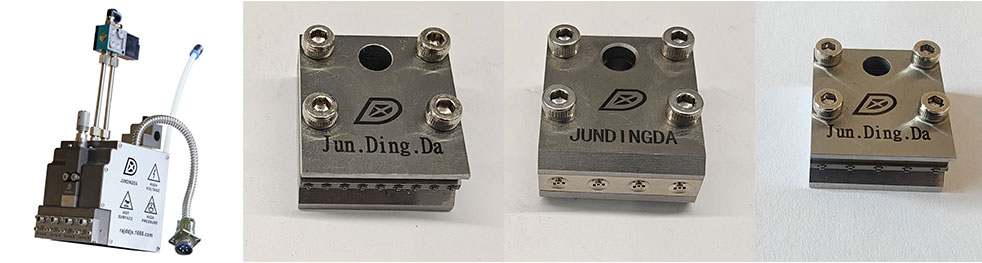

100mm Microfiber Spray Gun

 Model：XD-25XW100mm

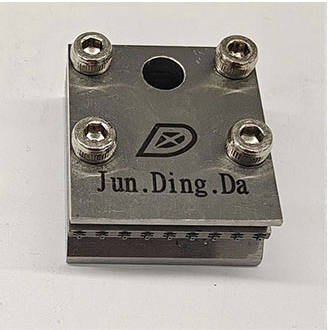

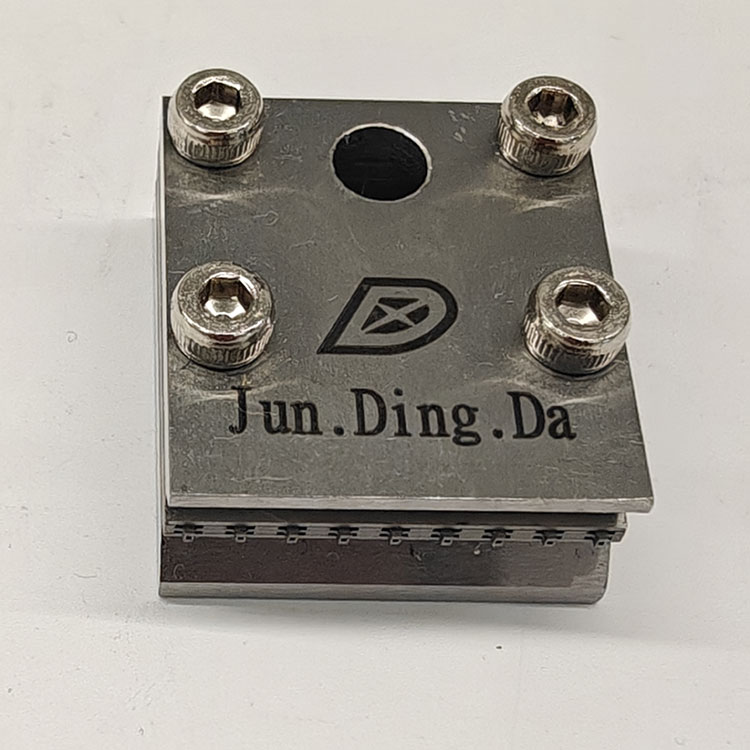

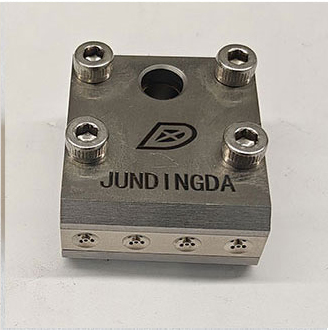

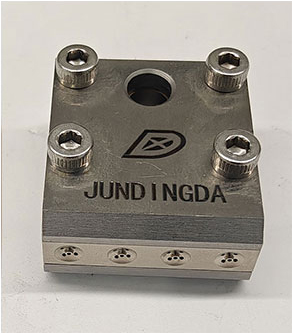

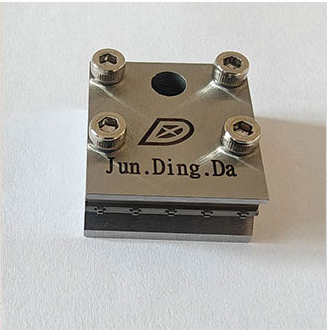

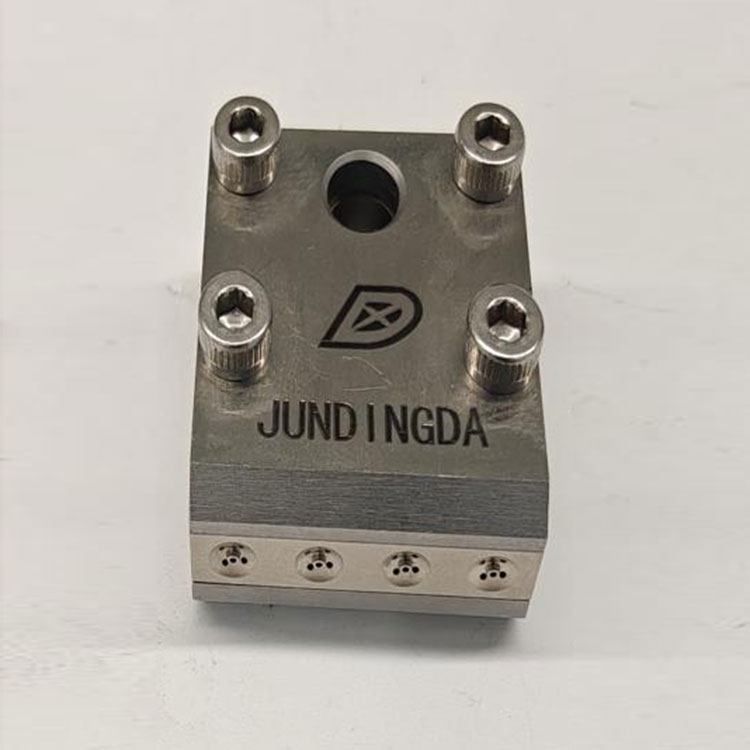

100mm Microfiber Spray Gun 25mm 9-hole spiral nozzle 25mm 5-hole fiber nozzle 25mm 4-hole spiral nozzle

1. 25mm small fiber nozzle and 25mm small spiral nozzle are optional

2. Working power supply AC220V, power 800W,

3. Sensor K type, pt100, nickel 120 are optional

4. Working air pressure 0.6mpa, nozzle air circulation heating atomization effect is good (atomization air pressure 0.15mpa)

5. Spraying width 30-100mm, adopting full-surround insulation structure design, suitable for a wider temperature range and a variety of glue spraying applications (suitable for spraying products below 100mm)

6. 120-mesh precision filtration system filters impurities in the glue to reduce clogging

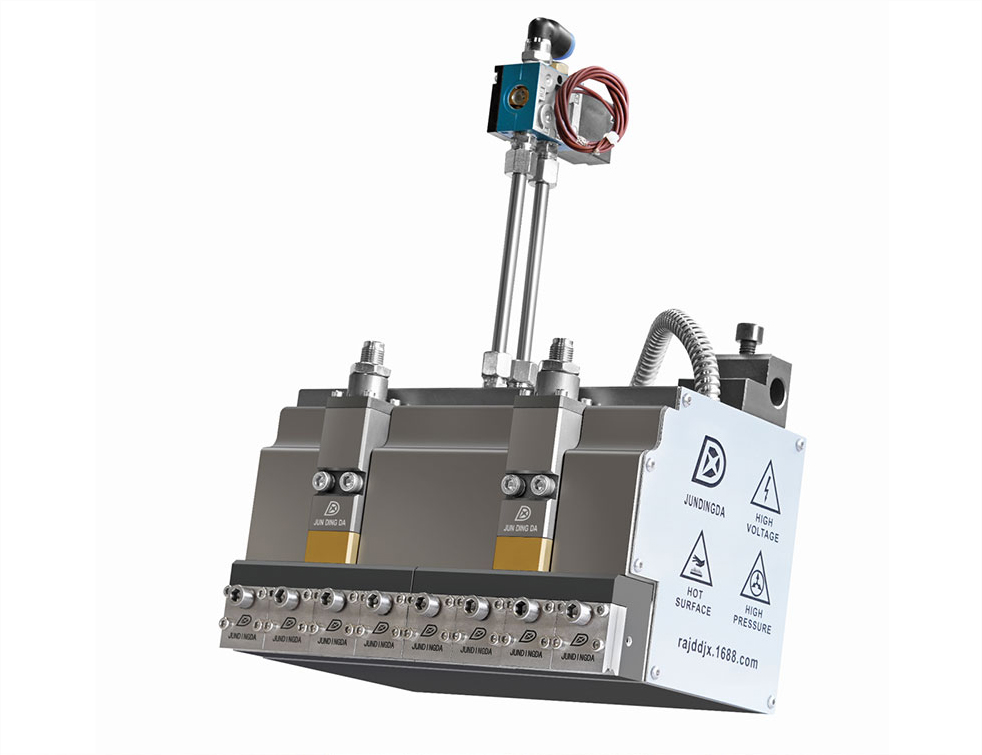

200mm Microfiber Spray Gun

Model：XD-25XW200mm

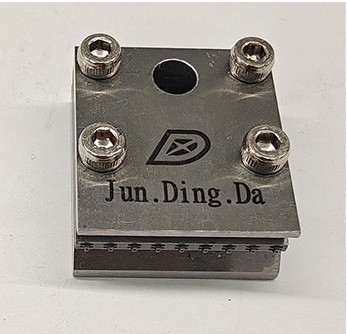

25mm9Hole spiral nozzle	25mm 5 hole fiber nozzle	25mm 4 hole spiral nozzle

1. 25mm small fiber nozzle and 25mm small spiral nozzle are optional

2. Working power supply AC220V, power 1500W,

3. Sensor K type, pt100, nickel 120 are optional

4. Working air pressure 0.6mpa, nozzle air circulation heating atomization effect is good (atomization air pressure 0.2mpa)

5. Glue spraying width 100-200mm, adopting full-surround insulation structure design, suitable for a wider temperature range and a variety of glue spraying applications (spraying glue for products below 200mm)

6. 120 mesh precision filtration system filters impurities in glue and reduces clogging

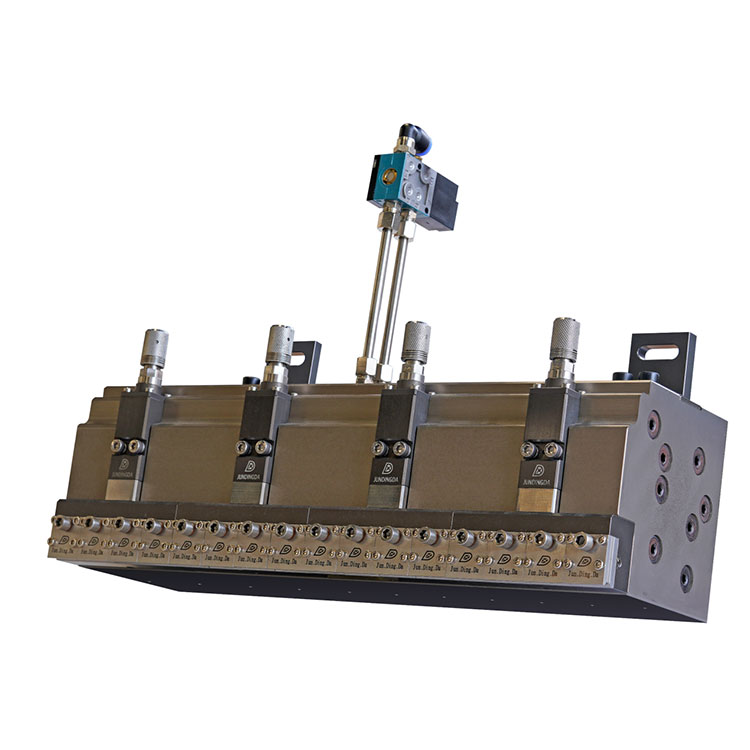

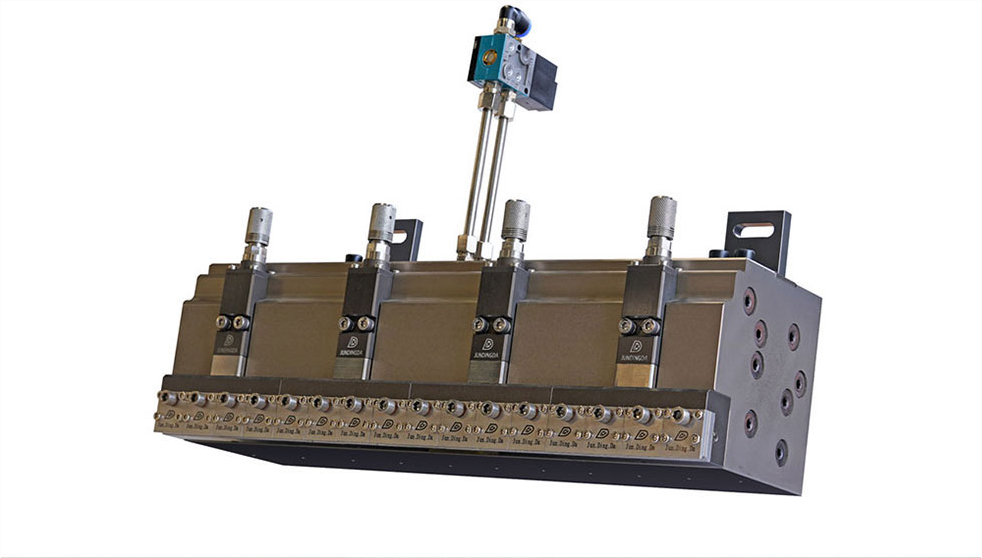

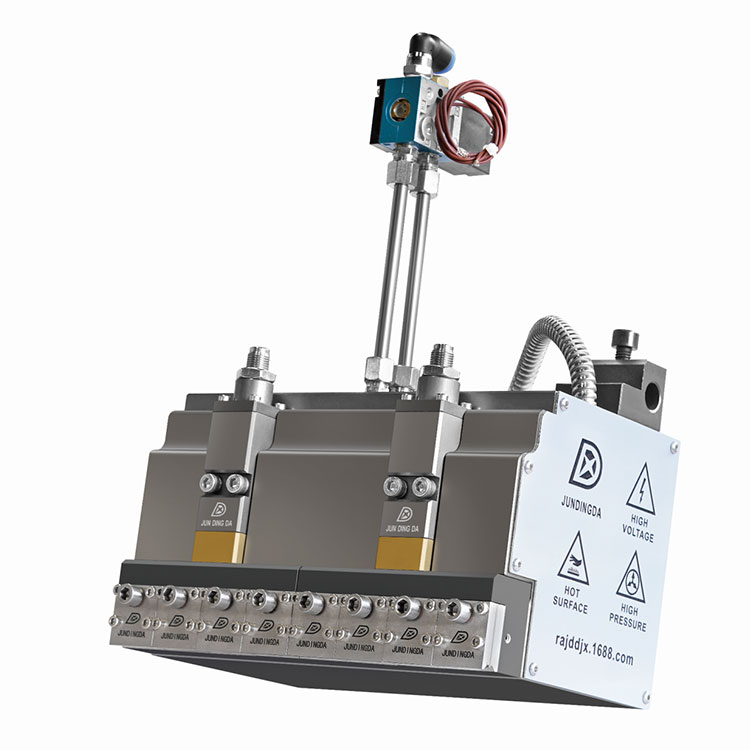

400mm Microfiber Spray Gun

Model：XD-25XW400mm

25mm 9 Hole spiral nozzle	25mm 5 hole fiber nozzle	25mm 4 hole spiral nozzle

1. 25mm small fiber nozzle and 25mm small spiral nozzle are optional

2. Working power supply AC220V, power 4000W,

3. Sensor K type, pt100, nickel 120 are optional

4. Working air pressure 0.6mpa, nozzle air circulation heating atomization effect is good (atomization air pressure 0.2mpa)

5. Glue spraying width 100-400mm, glue surface fiber spray on the surface of the object

6. Adopting full-surround insulation structure design, suitable for a wider temperature range and a variety of glue spraying applications (spraying glue on products below 400mm, such as sanitary mattresses, non-woven fabrics spraying glue composite)

7. 120 mesh precision filtration system filters impurities in glue and reduces clogging

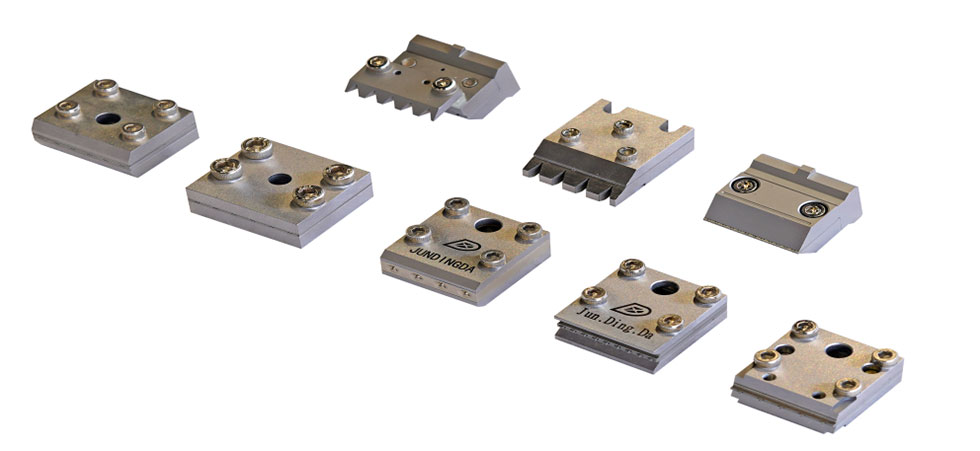

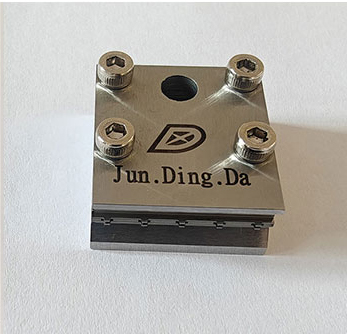

Provide a variety of small fiber nozzles for customers to choose
