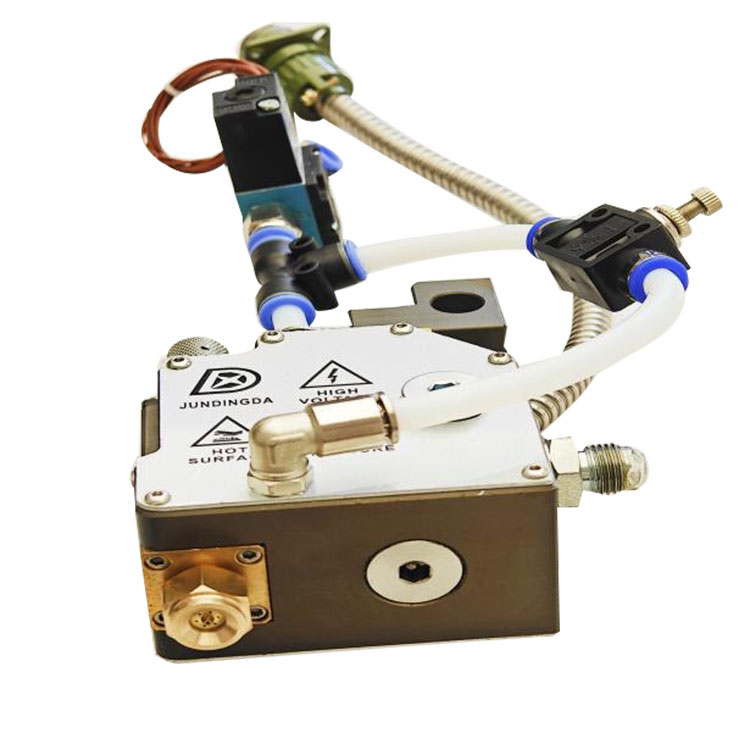

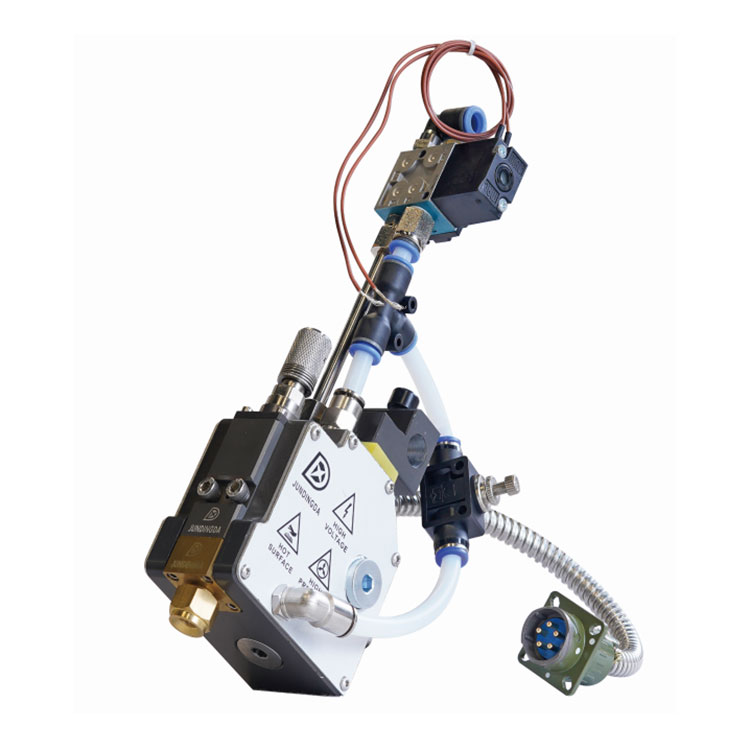

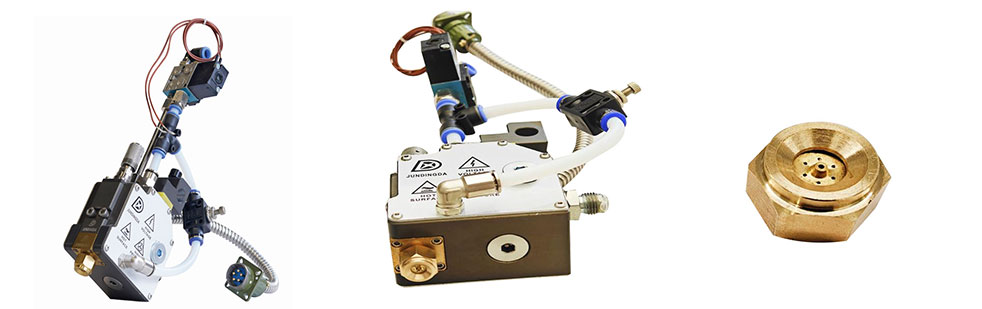

The Spiral Spray Gun from Jundingda Machinery factory is a high-performance tool designed to deliver a consistent spiral spray pattern for a wide range of applications. Engineered with precision and durability in mind, this spray gun ensures even distribution and efficient use of materials, making it an excellent choice for professionals in industries such as automotive, industrial coatings, and construction. With its ergonomic design and adjustable settings, the Spiral Spray Gun offers unparalleled control and ease of use, enhancing productivity and achieving flawless results in every task.

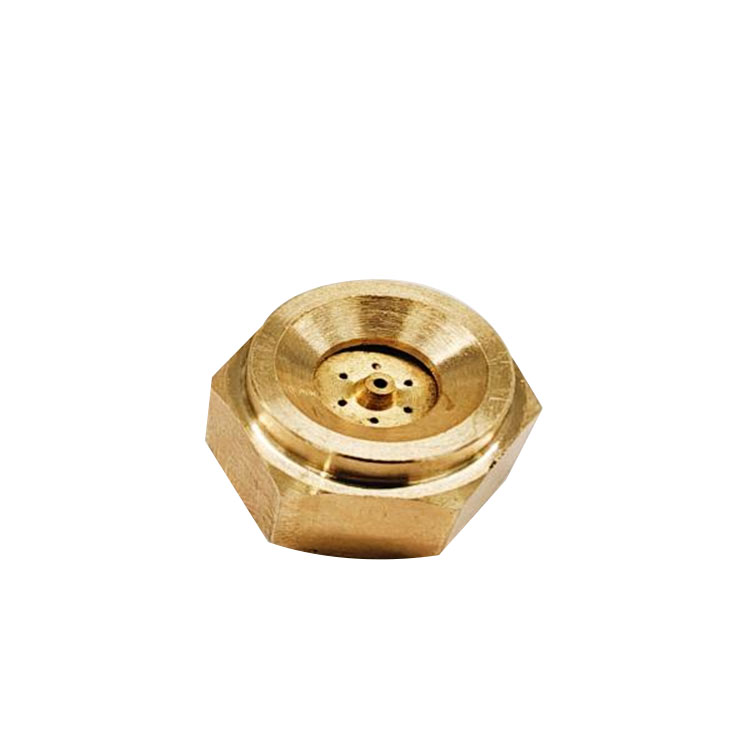

1. Single-head 6-hole or 4-hole spiral nozzle is optional
2. Working power supply AC220V, power 500W,
3. Sensor K type, pt100, nickel 120 are optional
4. Working air pressure 0.6mpa, nozzle air circulation heating atomization effect is good (atomization air pressure 0.2-0.4mpa)
5. Spraying width 20-80mm, glue surface into a spiral mesh surface.
6. Adopting full-surround insulation structure design, suitable for pressure-sensitive adhesive, polyolefin, PUR and various hot melt adhesive spraying
7. 120 mesh precision filtration system filters impurities in glue to reduce clogging
