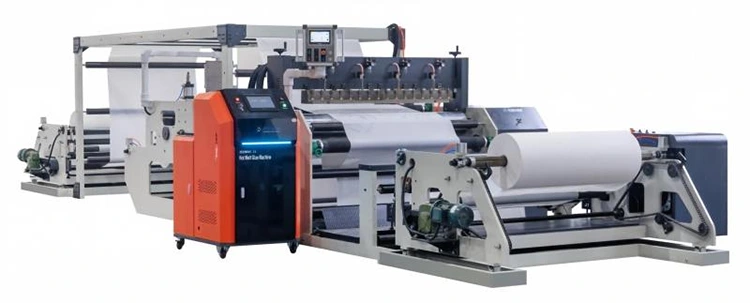

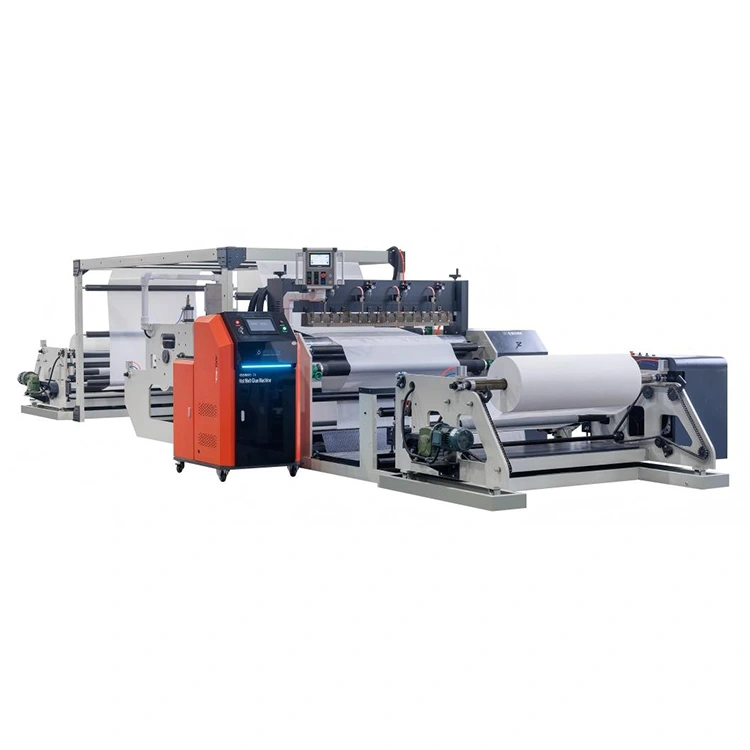

Hot Melt Glue Spray Laminating Machine

Different from ordinary fixed-parameter laminators, this Jundingda factory’s Hot Melt Glue Spray Laminating Machine realizes real-time linkage between glue output and running speed, with independent parameter calibration for different materials. It effectively solves common defects including uneven gluing, material waste and product delamination.

Matched with XD-Z50L hot melt unit, the machine adopts dual-frequency conversion and 10-channel zoning temperature control for stable long-hour glue supply. The fully insulated spray gun avoids glue solidification and blockage. Modular nozzles and filter components simplify maintenance, while built-in waste blowing and precision slitting ensure burr-free, flat finished materials.

Founded in 2011, Ruian Jundingda Machinery focuses on R&D and production of hot melt coating and composite equipment. With independent factory and mature industrial verification, the company supplies stable, standardized composite equipment for automotive, environmental protection and home textile industries.

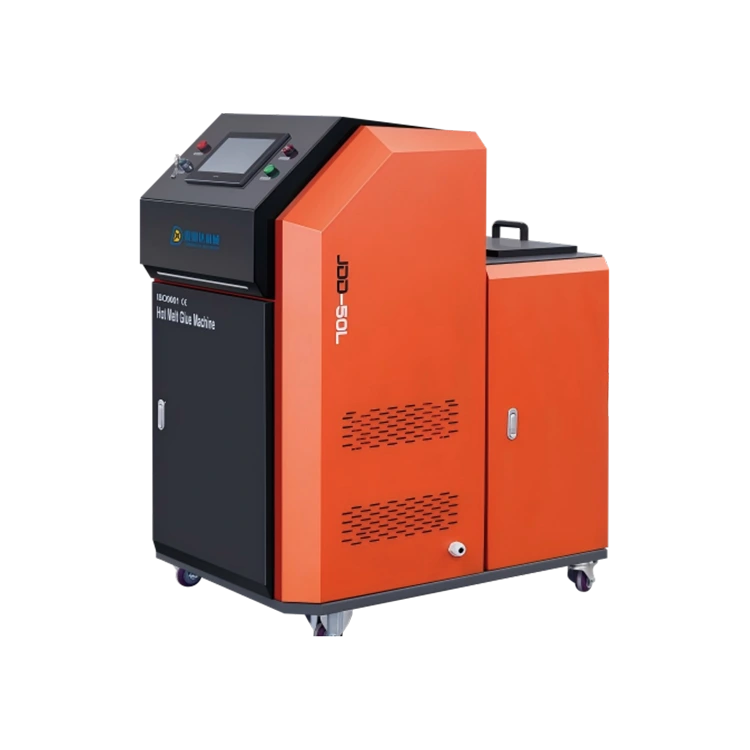

XD-Z50L Hot Melt Glue Machine

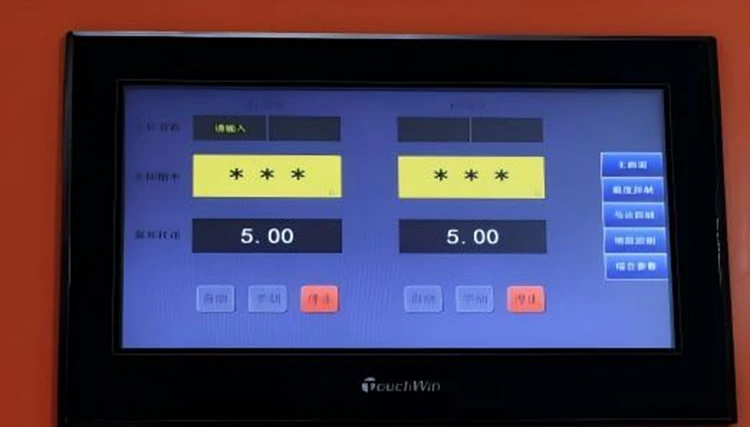

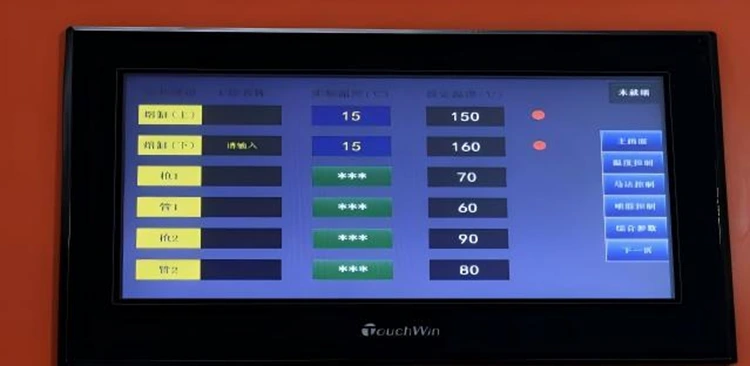

Xinjie intelligent temperature control system

Dual-frequency conversion control

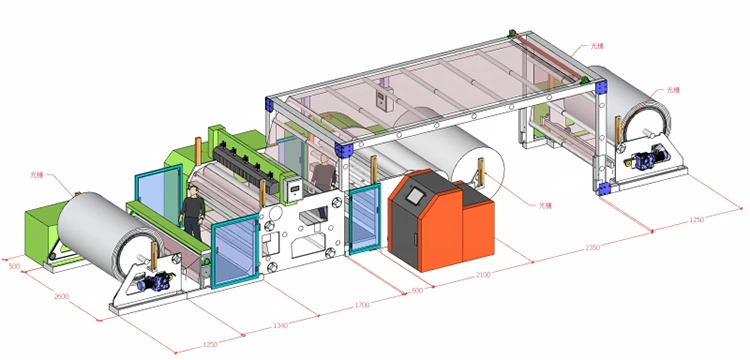

Working Principle

Materials are electrically unwound and automatically corrected for deviation. After precise hot melt spraying, materials are laminated with upper-layer substrates, thermally pressed, pneumatically slit, and finally servo-wound. The full closed-loop process achieves unmanned, consistent batch production.

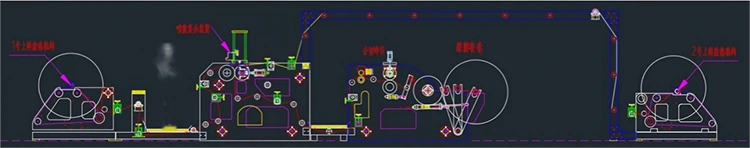

Product Manufacturing Schematic

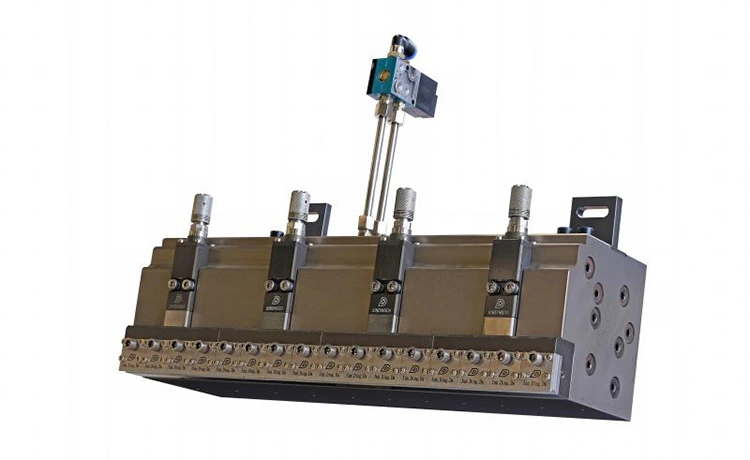

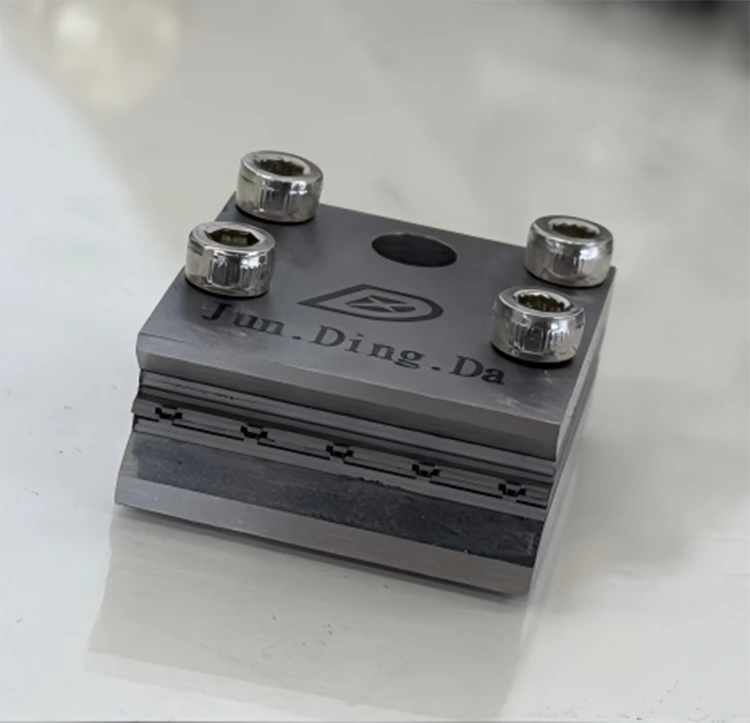

The 400mm small fiber spray gun features a fully enclosed thermal insulation structure. Its single nozzle is a 25mm combined type, with two optional nozzles: small spiral and small fiber. The spray sheet thickness is 0.3mm, and the spray hole spacing is 7mm, allowing easy maintenance. The minimum glue output per square meter is adjustable within the range of 5-20g.

Configurations

1.Coating method: Spraying ；

2. Max Effective Width: ≤1600mm ；

3. Glue output: 5-20g/m² ；

4. Max Production Speed ： 200m/min

5. Length of rollers ： 1800mm

6. Max Unwinding Diameter ： 1300mm ；

7. Servo unwinding devices: 2 sets

8. Power Supply ： 380V±15% ；

9. Glue output can be synchronously tracked with the main machine speed or adjusted independently.

Shelf Section

1. The main frame is integrally made of 25mm thick steel plates, supported by square steel tubes;

2. The main machine adopts a 2.9KW Inovance servo motor for single-station winding;

3. Traction and slitting are driven by a 2.9KW Inovance servo motor;

4. Equipped with 5 sets of pneumatic knife slitting devices; the lower knife uses an integral bearing steel roller (Amada cutter AMD-A90);

5. The Hot Melt Glue Spray Laminating Machine is mainly assembled by steel plates, square steels and channel steels;

6. Equipped with a waste blowing system (including a 3.7KW blower).

Winding & Unwinding Section

1. Unwinding adopts motor-driven traction for feeding, with a load capacity of 1000kg ；

2. Unwinding shafts use two 3-inch key-type air expansion shafts, suitable for paper tubes with an inner diameter of 76mm ；

3. 2 sets of unwinding devices (both equipped with photoelectric automatic deviation correction function-Yupeng ).

4. 2 sets of unwinding devices adopt 1.8KW servo motors- Inovance.

5. Winding adopts 2.9KW servo motor （ Inovance ） for single-station winding.

6. Winding uses a 3-inch slat air expansion shaft.

Glue Spraying Laminating Section

1. Equipped with an adjusting support frame for the glue spraying and coating die head (adjustable up, down, front and back with an adjustment range of 15cm).

2. Laminating section: φ240mm chrome-plated heating roller--1 pcs,  φ220mm silicone rubber roller--1 piece ；

3. Transmission rollers: Composed of several φ80mm aluminum guide rollers.

Transmission Section

1. Main motor: 2.9KW Inovance servo motor ；

2. Winding: 2.9KW Inovance servo motor ；

3. Main machine: 2.9KW Inovance servo motor ；

4. Traction and slitting: 2.9KW Inovance servo motor ；

5. Unwinding （ 2 sets ） : 1.8KW Inovance servo motors.

Pneumatic Control Section

1. Laminating pressure roller cylinder ： 80mm ；

2. Other pneumatic components ： Pressure regulating valves, manual pull valves, etc., （ AIRTAC ）；

3. A Φ8mm main pipe (PU material) runs through the entire machine ；

4. Air supply pressure ： 4-7kg/cm² ；

5. Air compressor is not included in this equipment.

Electrical Section

1. Main electric cabinet--1 pcs, controlled by Siemens PLC and touch screen (including 24V power output)

2. Main machine： 2.9KW (equipped with Inovance driver) ；

3. Winding： 2.9KW (equipped with Inovance driver) ；

4. Dual-screen display： main screen--1 pcs & secondary screen--1 pcs (both of Siemens brand)

Glue Machine Specs

Spare Parts

Core Product Features

Multi-Functional Integrated Design

Integrates unwinding, automatic deviation correction, one-time glue-spraying lamination, slitting, and winding functions.

200m/min High-Speed Output:

Full servo synchronous drive supports stable 200m/min operation, boosting mass production efficiency significantly.

Precision Micro Gluing & Saving:

5–20g/㎡ stepless adjustable gluing, supporting speed tracking and manual fine-tuning to reduce adhesive waste while ensuring firm lamination.

Zero-Deviation Stable Molding:

Real-time photoelectric correction eliminates material offset; constant tension and thermal pressing ensure flat, uniform finished products.

Low Maintenance Cost:

Modular detachable spray and filter components enable fast replacement; insulated structure prevents glue blockage and reduces failure rate.

Heavy-Duty Stable Frame:

25mm thick steel plate structure supports 24-hour continuous high-load operation.

Intelligent Visual Operation:

Siemens dual-screen visualization and zoning temperature control adapt to diverse material processes with simple operation.

Application Scenarios

Industrial Flexible Lamination:

High-speed composite for various flexible industrial substrates.

Automotive Functional Materials:

The Hot Melt Glue Spray Laminating Machine  is suitable for lamination of automotive sound insulation, shock absorption and thermal insulation materials.

Household Buffer & Soundproof Materials:

Applied in home textile shock absorption and indoor noise reduction composite materials.

Air Purification & Filter Materials:

Precise micro-gluing ensures air permeability of filter composite products.

Why Choose Us

Professional Manufacturer:

2011-established factory focusing on hot melt composite equipment, with stable production capacity and industry experience.

Independent R&D:

Self-developed full-servo lamination technology optimized for actual industrial production pain points.

Genuine Brand Components:

Equipped with Siemens, Inovance and AIRTAC core parts for stable long-term operation.

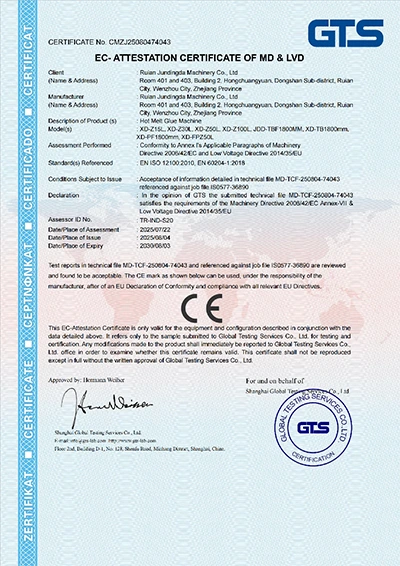

Standard Certification:

Complies with ISO management system and CE certification, supporting export standard production.

Full-Cycle Service:

Customized solution, on-site commissioning, operator training, 24h technical support and spare parts supply.

Product Comparison (VS Ordinary Laminating Machine)

Delivery & Quotation

Configuration:

Complete laminating machine + XD-Z50L hot melt glue machine + full set of standard spare parts

Price:

RMB 650,000 / Set (FOB available)

Lead Time:

40 working days after deposit

Payment Term:

50% deposit for production, 50% balance before shipment

FAQ

Q1: Full-servo advantages?

A: Full-link servo synchronization delivers faster response, stable high-speed operation and higher finished product qualification rate than traditional frequency conversion models.

Q2: Can glue volume adapt to different materials?

A: Yes. It supports speed automatic tracking and manual fine-tuning of 5–20g/㎡ micro gluing to match different material specifications.

Q3: Suitable for long batch production?

A: Heavy-duty frame and stable servo & temperature control system support 24-hour uninterrupted high-speed industrial operation.

Q4: After-sales support?

A: On-site commissioning, operation training, 24h technical support and original spare parts supply.

Q5: Support customization?

A: Non-standard customization is available for special material width, spraying mode and process requirements  about the Hot Melt Glue Spray Laminating Machine.
