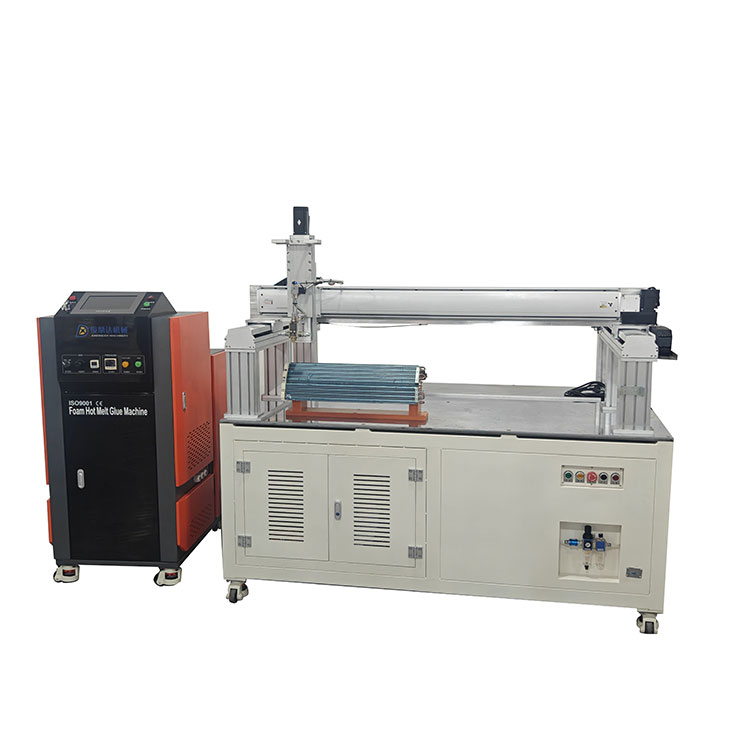

3-Axis Dispensing Machine for Evaporators

3-Axis Dispensing Machine for Evaporators

1:3-Axis Dispensing Machine for Evaporators description:

1. Replace the manual dispensing operation to achieve automated production, simple, convenient, high-speed and accurate, with an error of 0.1g.

2. The program file is uploaded and downloaded via a USB flash drive, which is convenient for data management and storage

3. The machine has needle control, no external teaching disk is required, and it is simpler and more convenient to debug than similar machines

4. CAD graphic recognition, simplified teaching, and accurate trajectory

5. Using X, Y, and Z three-axis linkage, any graphic can be glued once or multiple times. It can realize dot spraying, line glue, etc., and the size of the glue line is adjustable

3-Axis Dispensing Machine for Evaporators Product details:

Travel range: 1300*800*300

Maximum speed: XYZ.1000mm/s

Transmission mode: Shangyin screw guide rail

Servo system: Huichuan

Power supply AC-220V, power 7.5KW

Equipped with 2 rubber hoses of 4.5 meters and 1 set of foam glue gun.

Product Features

◎High-strength square welding equipment body, a whole piece of 15mm thick steel plate bottom plate, so that the XYZ axis verticality is high, improving the processing accuracy of the equipment;

◎Standalone operation, the easiest installation;

◎No need to match with an external computer to run standalone, simple operation settings;

◎Humanized teaching box allows you to easily complete a variety of complex programs, providing: batch modification, array copy, graphic translation, graphic scaling, automatic rounding and other advanced functions;

◎Support three-axis space linear interpolation, three-axis space arc interpolation, elliptical arc interpolation;

◎Adopt speed look-ahead algorithm, automatic rounding corner speed;

◎Track lag opening, early closing and other functions to solve the problem of glue accumulation at the starting point and end point.

For more information or to schedule a demo, contact us today! Upgrade your production line with the advanced3-Axis Dispensing Machine for Evaporators, delivering precision and efficiency to meet modern manufacturing demands.
