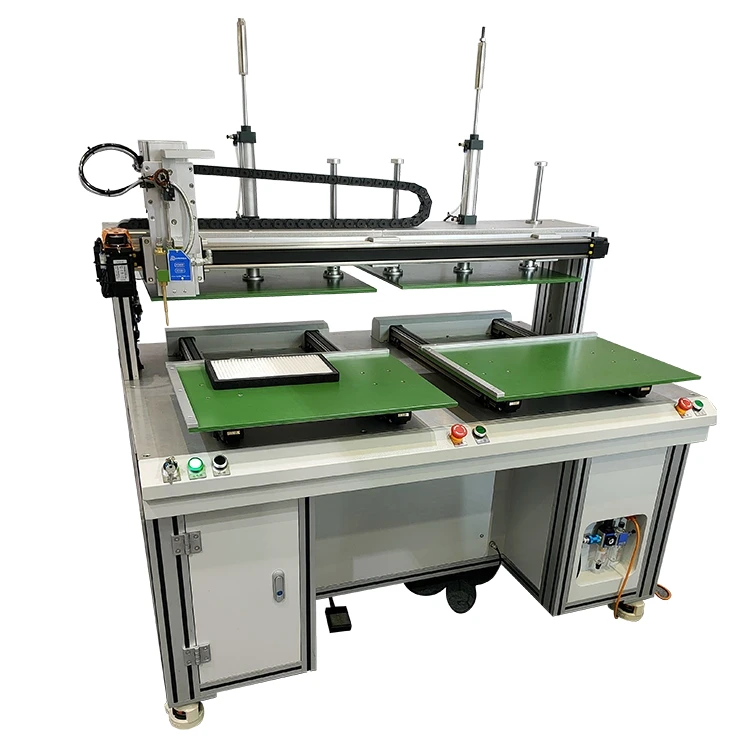

1 Replace manual specific dispensing operations to achieve automatedThree Axis Table Hot Melt Glue Dispensing Machineion, simple and convenient, high-speed and accurate;
2 Adopt dual-station belt pressure-maintaining design to improve work efficiency by about 40%. (Adjustable range of pressure plate 5-100mm, using adjustable cylinder)
3 The machine has needle control, no external teaching disk is required, and debugging is more convenient than similarThree Axis Table Hot Melt Glue Dispensing Machines;
4 Ultra-quiet operation;
5 Compact size, sealed structure, reasonable layout, higher cost performance;
6 According to the principle of ergonomics, the table height is optimized, which is more in line with the workers' operation process and reduces the workers' fatigue.
Platform Dimensions: 1500*1050*1600
[Three Axis Table Hot Melt Glue Dispensing Machine Model]: XD2-651/- (Note: Dual-platformThree Axis Table Hot Melt Glue Dispensing Machine processing dimensions 600*450*130)
|
Specification |
Details |
|
Model |
XD-651/XD-150010501600 |
|
Processing Range (mm) |
X, Y, Z axis: 600 x 450 x 100 |
|
Maximum Speed (mm/s) |
XY/Z axis: 600 mm/s |
|
Maximum Load (Kg) |
Table: 30 Kg (at <80 mm/s) |
|
|
Z axis: 5 Kg |
|
Programming Method |
Teaching box teaching programming |
|
Transmission Method |
Synchronous belt plus screw |
|
Motor System |
Servo precision motor |
|
Repeat Positioning Accuracy (mm) |
±0.02 |
|
Power Supply Requirements |
220V 800W |
|
Environmental Requirements |
5～40℃ |
|
Dimensions (mm) |
1500 x 1050 x 1600 |
|
Weight (Kg) |
220 (without table) / 260 (with table) |
