Hook-and-Loop Fastener Coating Equipment

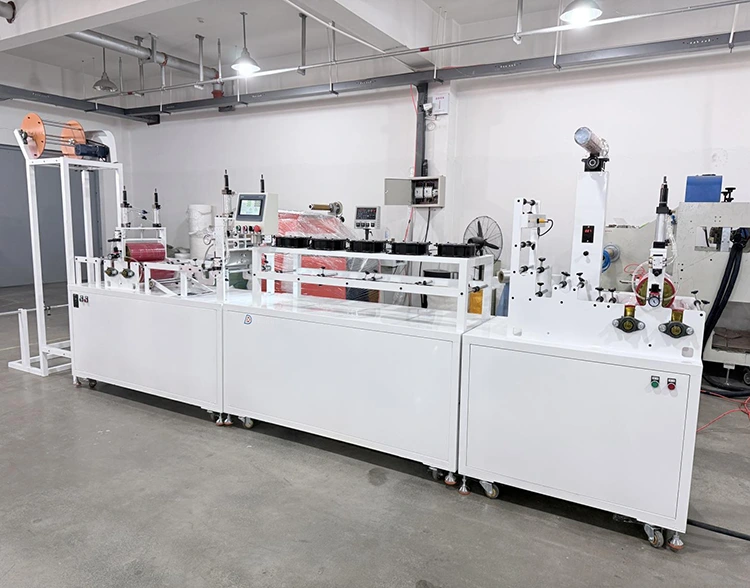

The XD-TB300mm Hook-and-Loop Fastener Coating Equipment  offered by Jundingda factory is professional equipment for hook-and-loop fastener hot melt coating and lamination. Equipped with steel and silicone composite rollers and multi-group tension control systems, it ensures stable and flat material conveying. Matched with the XD-Z100L hot melt adhesive machine, the whole system realizes precise and stable hot melt coating processing for flexible materials.

The supporting XD-Z100L hot melt adhesive machine adopts 6-channel PLC intelligent constant temperature control to avoid glue carbonization and uneven glue output. The glue gun supports 0–300mm width adjustment, and the 320mm high-temperature alloy coating head (60° hardness) supports accurate 10–30g/㎡ coating weight adjustment to meet diverse process requirements.

The machine adopts variable-frequency speed regulation and PLC synchronous glue pump control to ensure coordinated operation. The maximum running speed is 50m/min. Equipped with an independent cooling system, 350mm roller width and 600mm maximum unwinding diameter, it adapts to conventional hook-and-loop fastener production specifications.

Core Equipment Parameters

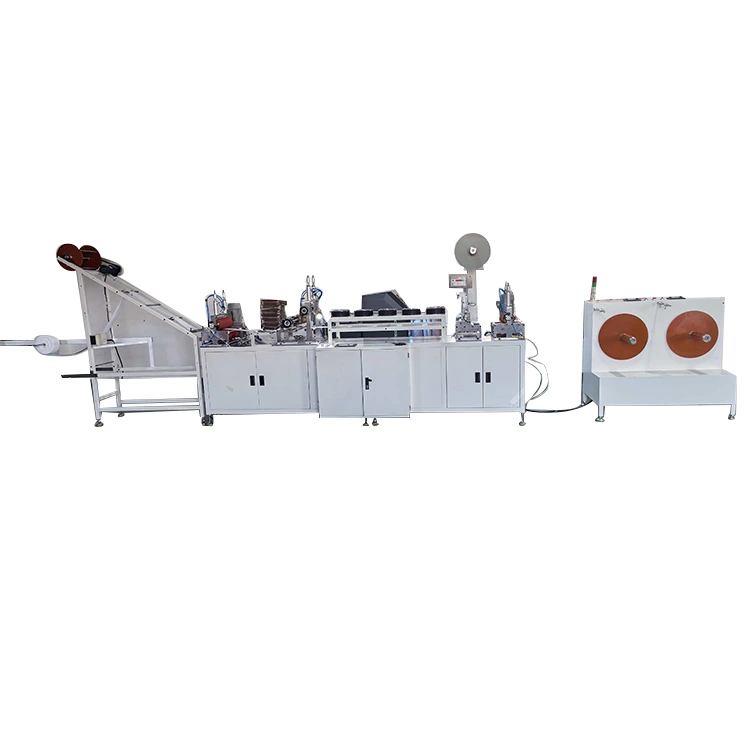

Coating Machine Host (XD-TB300mm)

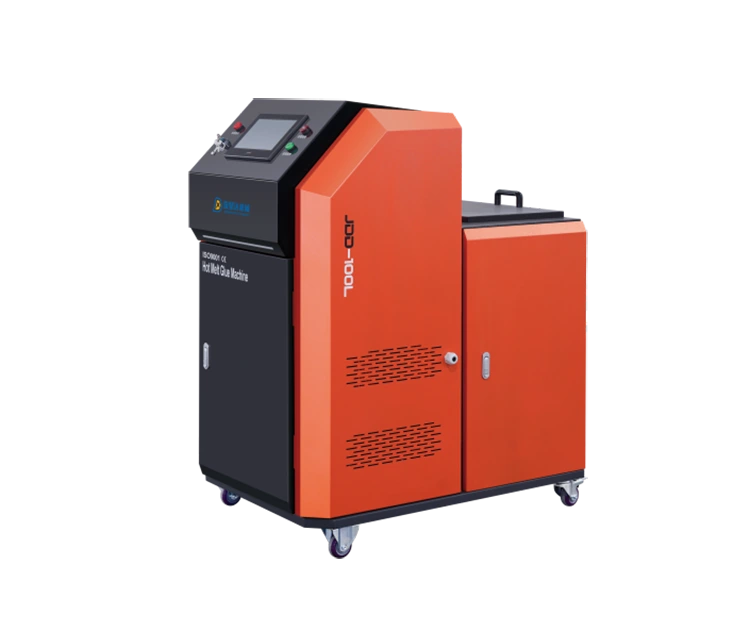

Supporting Hot Melt Glue Machine (XD-Z100L)

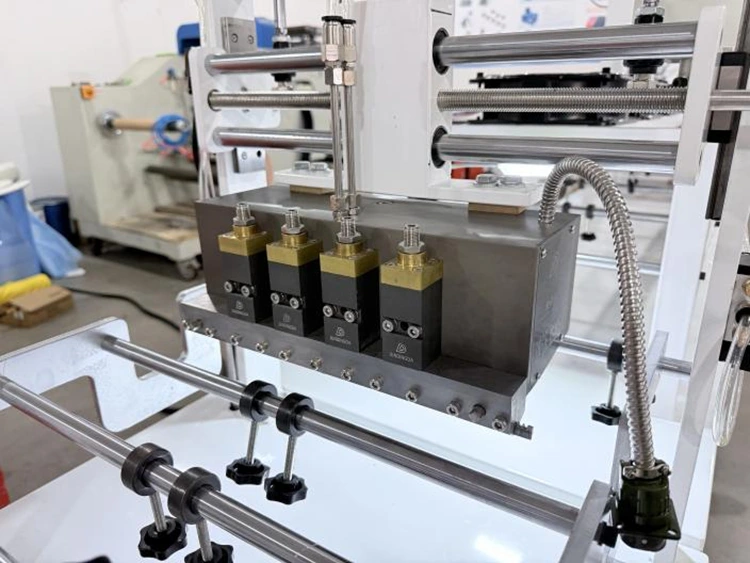

Hot-melt adhesive machine XD-Z100L             Adjustable Glue Gun (0–300mm adjustable)

Main Product Features

Precise Coating &  Durable Structure:

Equipped with a 320mm high-temperature alloy coating head (60° hardness) with 300mm effective coating width. The coating weight is adjustable from 10g/㎡ to 30g/㎡ for accurate and consistent coating results.

Intelligent & Stable Control:

6-channel PLC constant temperature system and Teco frequency converter ensure stable temperature and synchronous operation of glue output and machine speed, effectively preventing glue blockage and uneven coating.

Standard Mass Production Configuration:

Dual unwinding and dual winding structure with 3 sets of tension control systems ensures flat material operation. The matching cooling system supports continuous stable operation at 50m/min.

Wide Compatibility & Simple Operation:

0–300mm adjustable glue gun adapts to different fastener sizes. Visualized control system simplifies daily operation and maintenance.

Stable Glue Supply:

The Hook-and-Loop Fastener Coating Equipment features 90KG/H melting speed and 72KG/H maximum supply capacity, ensuring continuous and efficient production.

Enterprise Strength

Company Overview

Founded in 2011, Ruian Jundingda Machinery Co., Ltd. is a professional manufacturer focusing on R&D and production of hot melt coating and composite equipment. The company has an independent modern factory, more than 30 professional employees and an annual output value of over 35 million RMB, capable of standardized mass production and customized equipment development.  Our equipment has passed quality certification, like ISO, CE, etc.

Application Fields

Our Hook-and-Loop Fastener Coating Equipment is widely applied in medical protection, home textiles, automotive, packaging, non-woven composites, air purification and other industries. The company continuously optimizes products to adapt to environmental protection and energy-saving production demands, supporting PP and glass fiber foam gluing and matching production lines.

Market & Cooperation Strength

High Market Share:

Occupies about 80% market share in domestic filtration and purification hot melt equipment industry with stable brand recognition.

Rich Delivery Experience:

Delivers over 20 sets of composite production lines annually to the filter material industry, with stable and reliable delivery capacity since 2014.

Extensive Cooperation:

Long-term strategic partnerships with numerous domestic manufacturers. Equipment compatibility and stability are fully verified by mass market applications.

Complete Service System

Pre-sales Service

Provide professional demand analysis, equipment selection and process scheme consultation. Support equipment demonstration, trial test and personalized customized design according to production requirements.

In-sales Service

Provide on-site installation, commissioning and professional operational training for staff. Update production and delivery progress in real time to ensure transparent communication.

After-sales Service

Warranty Service:

One-year full machine warranty for non-artificial damage. Core components such as PLC system, frequency converter and heating system enjoy extended quality guarantee.

24/7 Technical Support:

Professional engineering team provides online guidance, fault diagnosis and remote debugging all year round.

On-site Service:

On-site installation, commissioning and equipment training are available. Engineers provide door-to-door maintenance for major failures.

Spare Parts Supply:

Standard wearing parts are in stock for fast delivery to reduce equipment downtime.

Long-term Maintenance:

Provide regular equipment inspection, cleaning guidance, parameter calibration and lifetime after-sales follow-up service.

Transaction & Delivery Information

FAQ

Process & Coating Questions

Q1: Is the coating weight adjustable? What is the adjustment range?

A: Yes. The equipment supports precise customized coating weight adjustment from 10 g/㎡ to 30 g/㎡. Equipped with a PLC synchronous glue control system, it ensures uniform glue output with low errors to adapt to hook-and-loop fasteners of different thicknesses and specifications.

Q2: What is the maximum coating width? Can it process narrow-width fasteners?

A: The total coating head width is 320 mm with an effective coating width of 300 mm. The matched glue gun is adjustable from 0 to 300 mm, freely adapting to narrow and standard-width hook-and-loop fastener production with high compatibility.

Q3: What is the maximum running speed? Is the machine stable for mass production?

A: The maximum design speed is 50 m/min. Adopting variable-frequency control and PLC synchronous glue output system with three sets of tension control structures, the machine maintains stable operation at high speed without material deviation, wrinkles or broken coating, supporting 24-hour continuous industrial mass production.

Configuration & Adaptability Questions

Q4: What types of glue are compatible with the XD-Z100L hot melt machine?

A: The Hook-and-Loop Fastener Coating Equipment is specially designed for industrial hot melt adhesives and perfectly matched for hook-and-loop coating processes, featuring fast melting speed, stable glue supply and no blockage or carbonization issues.

Q5: Can the unwinding and winding system support large-diameter raw materials?

A: The maximum unwinding diameter reaches 600 mm. Equipped with dual unwinding and dual winding structure, it supports large roll diameter materials, reducing frequent material replacement and improving production efficiency.

Q6: Can transition wheels and customized accessories be installed?

A: Yes. Transition wheels can be installed according to actual production processes and material specifications. We also provide personalized function optimization and customized modification services.

Operation & Maintenance Questions

Q7: Is the machine difficult to operate? Can new operators master it quickly?

A: The machine adopts visualized PLC intelligent control and frequency conversion adjustment with standardized operation procedures. We provide complete on-the-job training covering operation, parameter setting, daily maintenance and basic troubleshooting, enabling new operators to work independently in a short time.

Q8: Does the high-temperature alloy die head require frequent maintenance? What is its service life?

A: The die head is made of high-hardness (60°) high-temperature alloy with excellent high-temperature resistance and wear resistance and long service life. Daily maintenance is simple, only requiring regular cleaning and drying without complex upkeep work.

Delivery & After-sales Questions

Q9: How long is the production and delivery cycle?

A: The standard production cycle is 10–15 working days. Production and delivery will be arranged after payment confirmation, with real-time progress updates provided.

Q10: Does the machine include installation, commissioning and after-sales support?

A: Yes. We provide full-process pre-sales, in-sales and after-sales services, including on-site installation and commissioning, operational training, 24-hour online technical support, fast spare parts supply and regular equipment inspection and maintenance guidance.

Q11: Is the quoted price tax-inclusive? What is the tax rate?

A: The unit price of 98,000 RMB is tax-inclusive with 13% VAT special invoice available for deduction.
