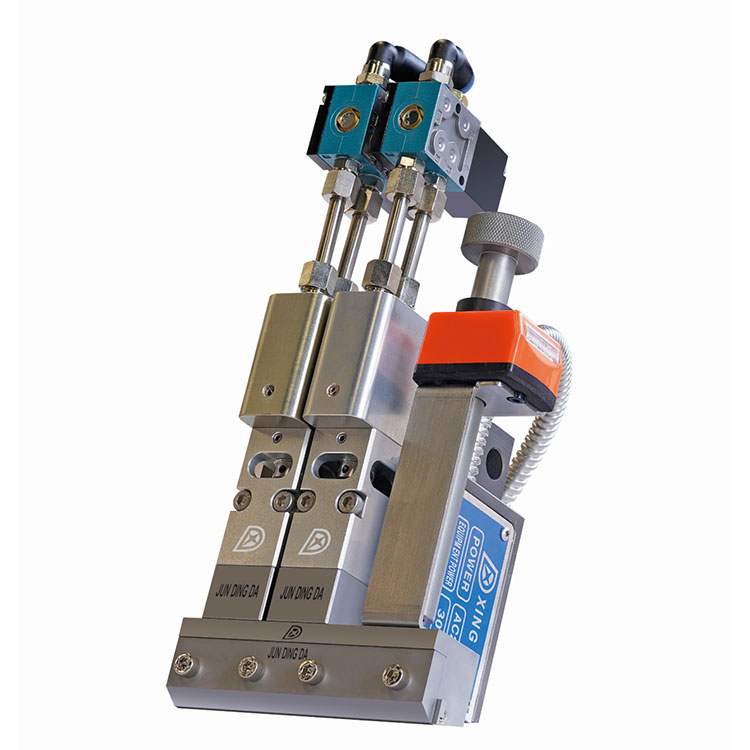

Modular Reverse Dispensing Adjustable Gun

The Modular Reverse Dispensing Adjustable Gun is a tool for precise glue and coating application that combines reverse dispensing and adjustable features, making it widely used in industry, manufacturing and other high-precision applications.

1. The scraper is made of alloy material with a hardness of 60°, which is wear-resistant and has a long service life.

2. Large flow air-on-air-off 2 back-pump valve body scraping, equipped with MAC solenoid valve to meet high-speed interval gluing

3. Working power supply AC220V, power 800W, sensor K type, pt100, nickel 120 optional

4. Working air pressure 0.6mpa

5. Gluing width 5-80mm handle adjustable, glue thickness 0.3-3.5mm, no need to replace the glue sheet, the glue amount can be adjusted independently.

6. 120 mesh precision filtration system filters impurities in the glue to reduce clogging

7. Glue discharge method: right adjustable

Applicable: door and window edge strips, air filter edge strip glue sealing
