Modular Volley Gun

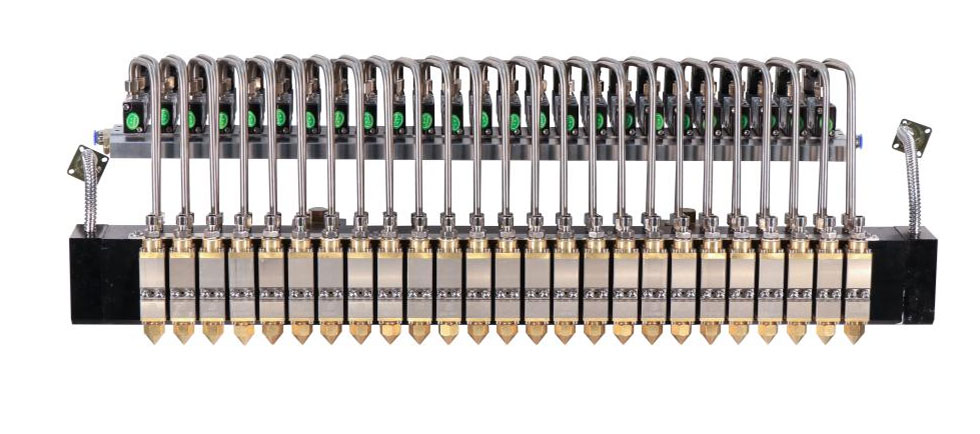

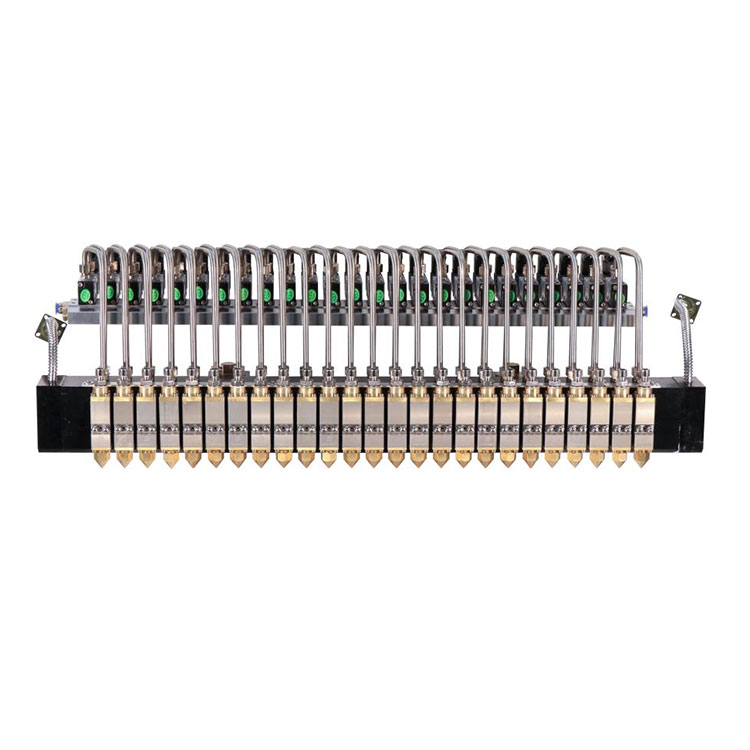

Modular Volley Gun：Model：XD-26ZH25.4（Suitable for 700pp gluing machine and 700 non-partition gluing machine）

1. Working power supply AC220V, power 2200W, 2-way heating

2. Sensor K type, pt100, nickel 120 optional

3. Working air pressure 0.6mpa, solenoid valve DC24V, air-on and air-off glue gun valve body,

4. Number of glue heads 26, spacing 25.4mm, nozzle aperture 0.6-1.0mm optional

5. 120 mesh precision filtration system filters impurities in the glue to reduce clogging

6. 2-way glue inlet, 2-way filter, adapter line glue continuous, intermittent glue.

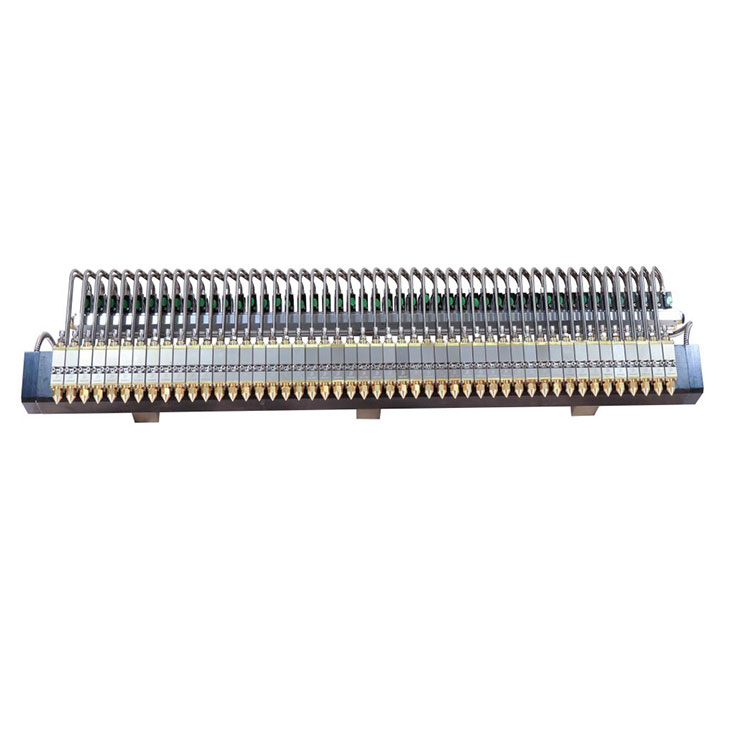

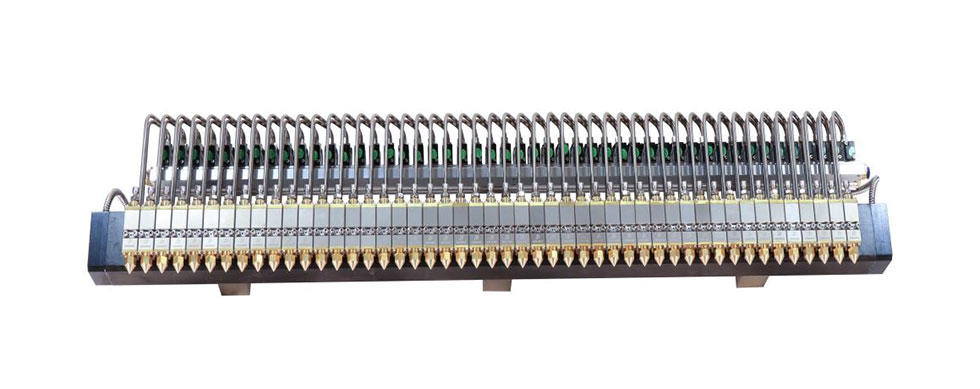

Modular Volley Gun ： Model：XD-48ZH25.4mm（Suitable for 1300pp gluing machine or 1300 non-partition gluing machine）

1. Working power supply AC220V, power 3600W, 2-way heating

2. Sensor K type, pt100, nickel 120 optional

3. Working air pressure 0.6mpa, solenoid valve DC24V, air-on and air-off glue gun valve body,

4. Number of glue heads 48, spacing 25.4mm, nozzle aperture 0.6-1.0mm optional

5. 120 mesh precision filtration system filters impurities in the glue to reduce clogging

6. 3-way glue inlet, 3-way filter, adapter line glue continuous, intermittent glue.

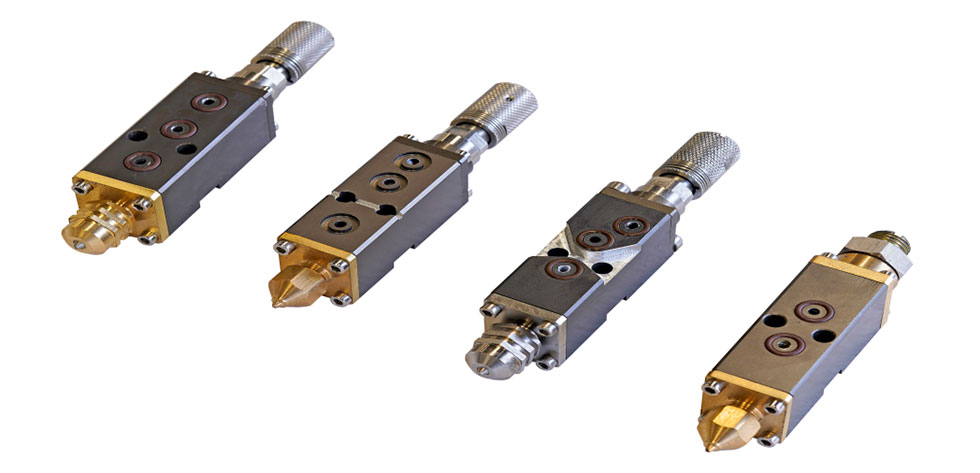

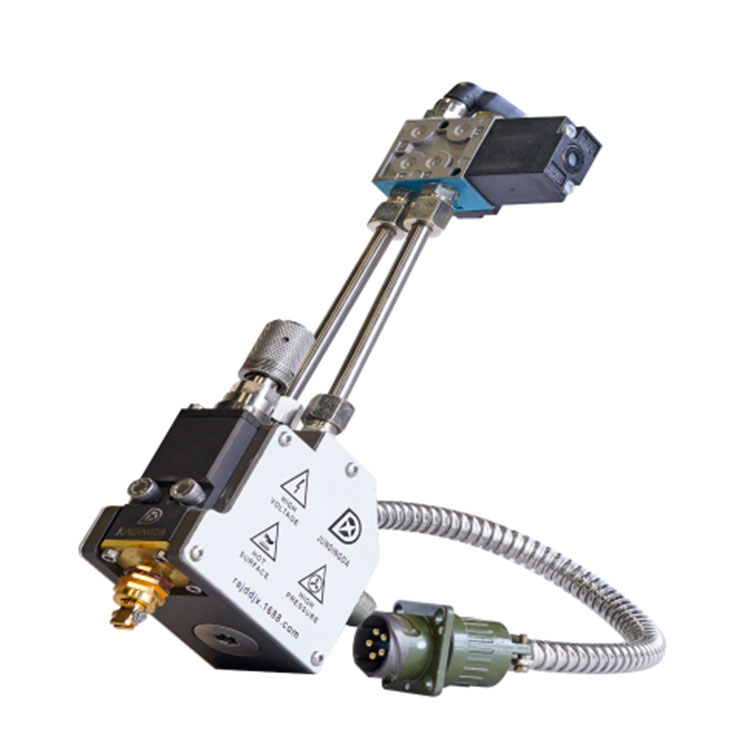

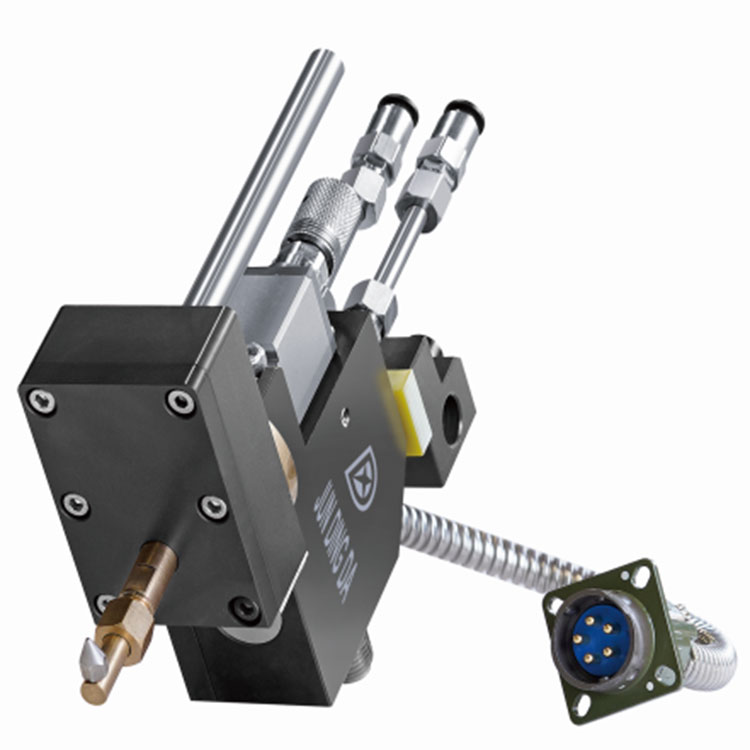

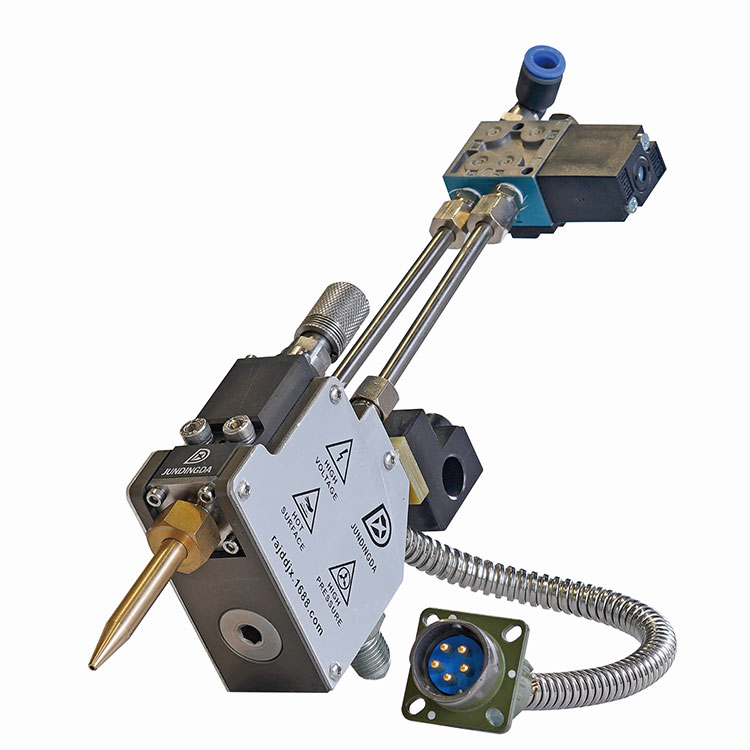

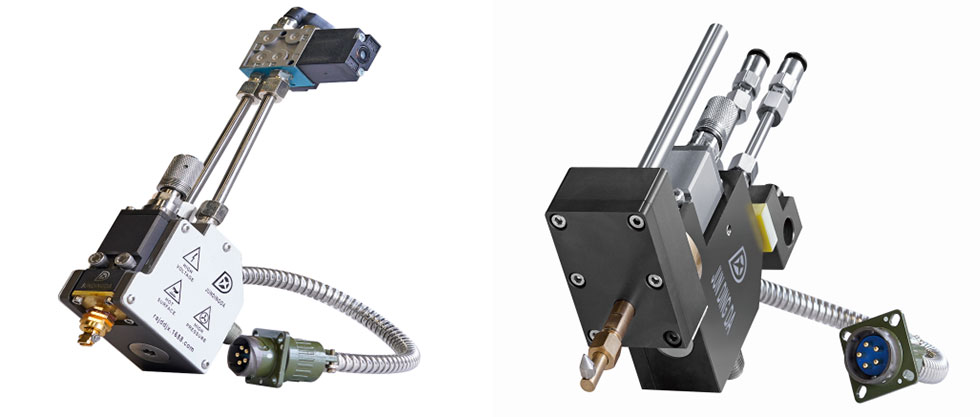

Various dispensing valve bodies for customers to choose

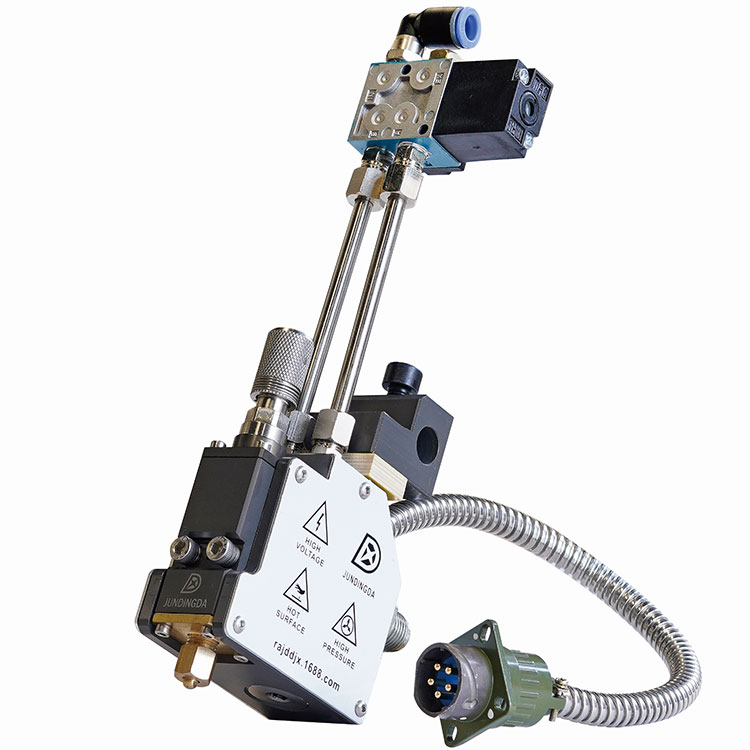

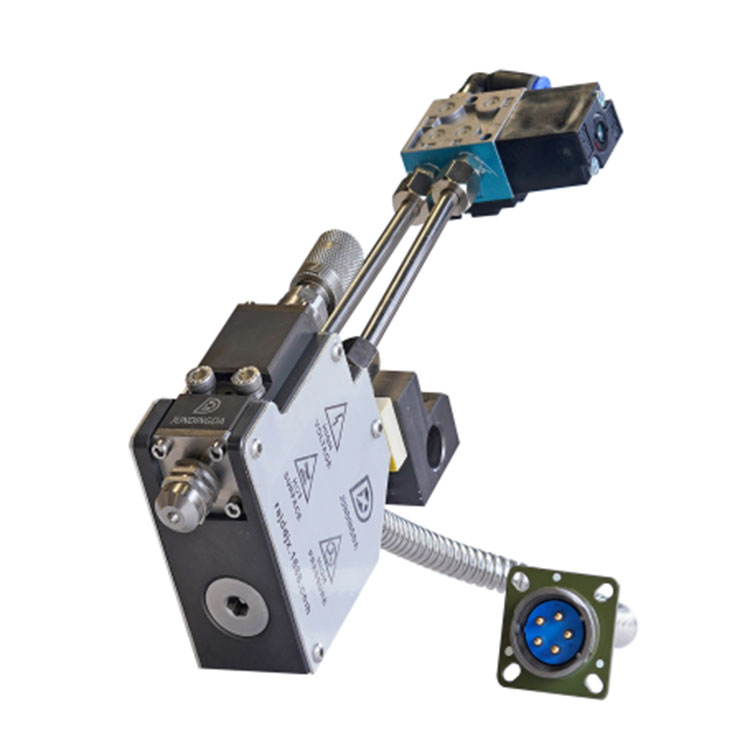

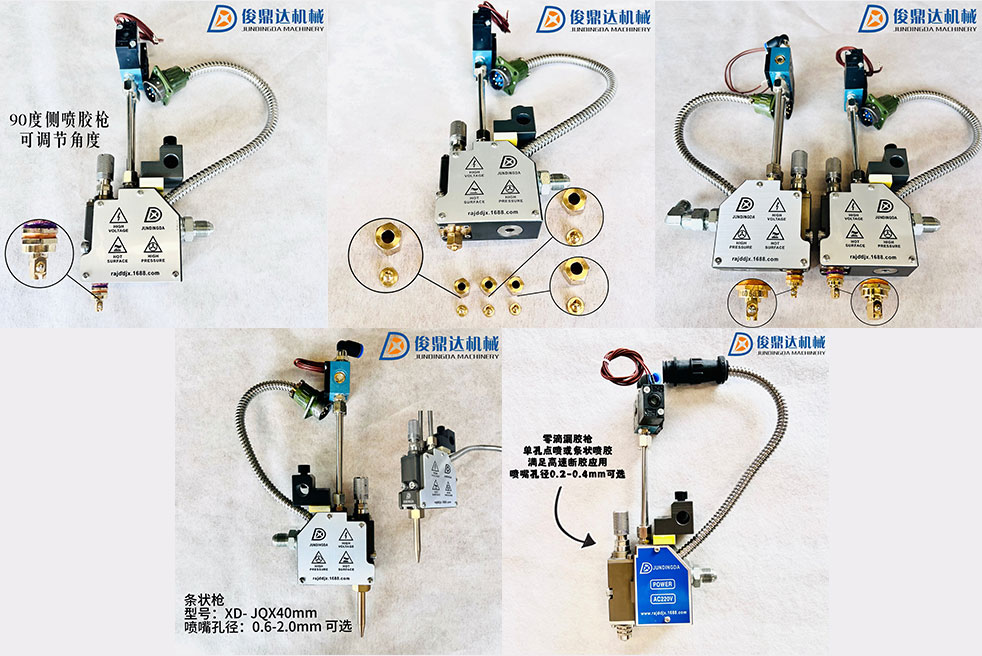

Packaging gun series

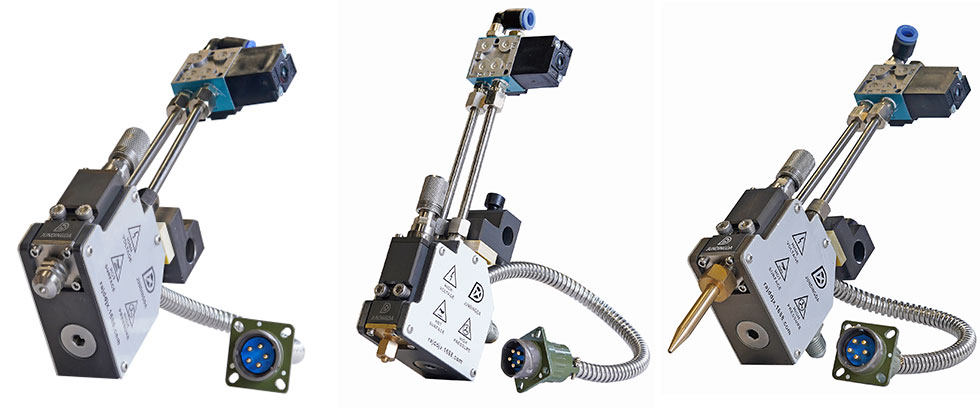

Left-side reverse-pull adjustable gun Right-side reverse-pull adjustable glue gun Zero-drip glue gun XD-LD40MM Multi-hole direct-injection glue gun XD-XP2-4    Strip glue gun XD-XQ40mm

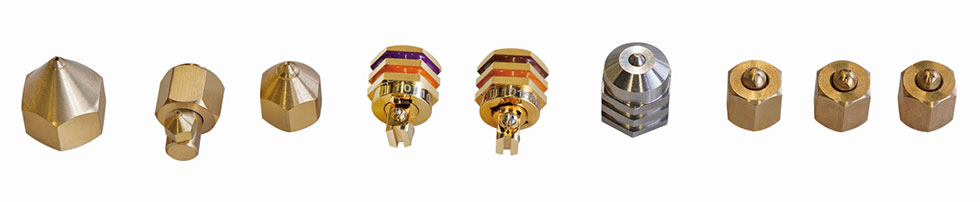

0.2-0.4mm nozzle aperture  2-4 hole nozzle, aperture 0.2-0.4mm   0.5-2.0mm strip nozzle

Side dispensing gun XD-ZP40mm                                                                                                                              Rotary glue gun  XD-XZ40MM

1-2 hole side nozzle 0.2-0.4mm 90° right Angle rotating nozzle can be sprayed on the side of the product under the motor drive

1. Equipped with precision filtration system, it provides a variety of nozzles of different specifications to meet packaging applications

2. The glue gun adopts air-on-air-off design and is equipped with MAC high-frequency solenoid valve to meet 1600 times/min

3. The glue gun adopts zero-drip structure design, the valve needle directly reaches the nozzle, and the glue is cut off cleanly

4. The glue gun is semi-enclosed and heat-insulating structure design, suitable for a variety of hot melt glue spraying operations
