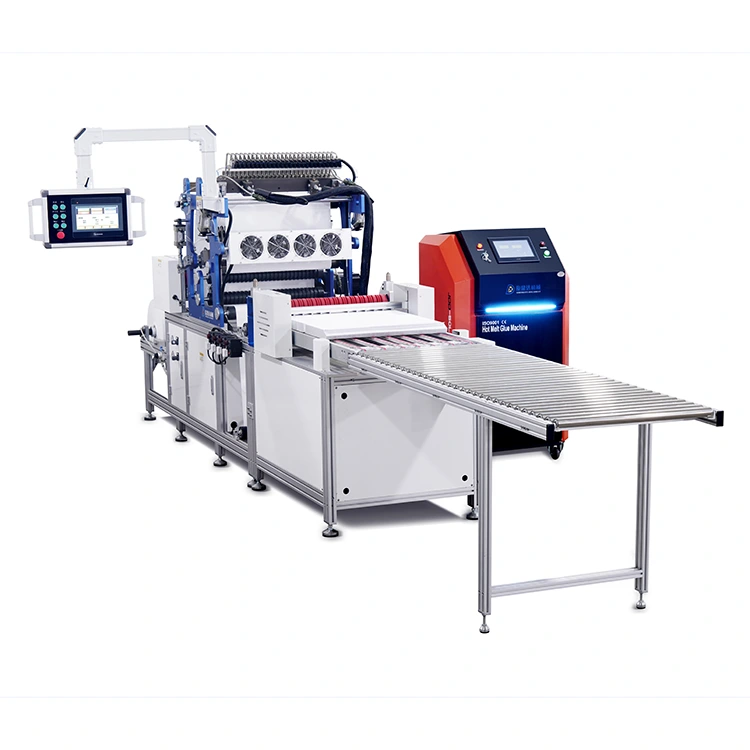

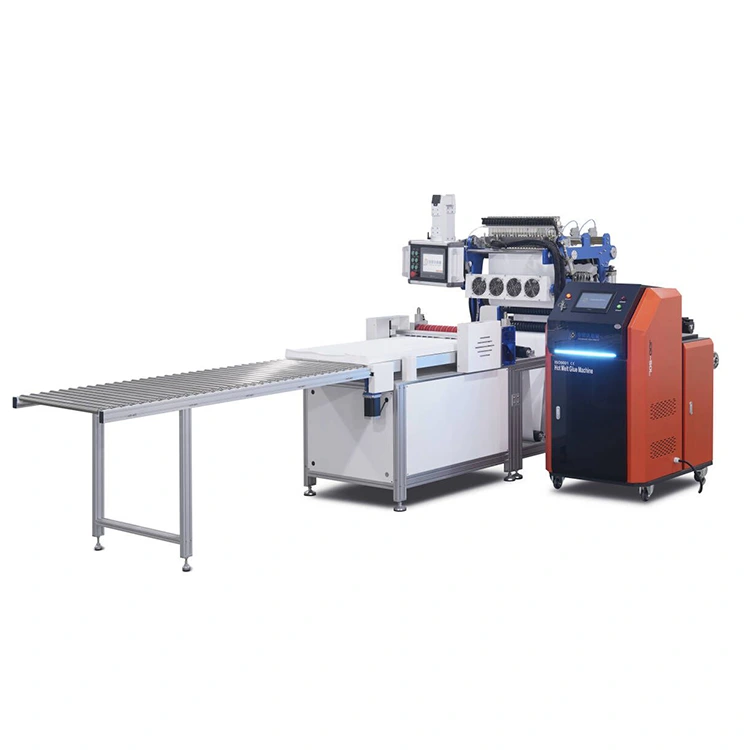

Paper Folding Machine Without Partition

Paper Folding Machine Without Partition

Production parameters:

1. Processing width: ≤680mm

2. Folding height: 17~120mm

3. Maximum material roll: ≤900mm

4. Production speed: 5-15M/min

5. Machine power: 15KW

6. Air pressure: 0.6-0.8 Mpa

7. Machine weight: 1500kg

8. Overall dimensions: 6400mm*1500mm*2000mm (length*width*height)

Feeding part:

1. Pneumatic feeding

2. Pneumatic positioning and tightening of the material shaft

3. Automatic magnetic powder tension system (automatically adjusts the tension according to the size of the material roll)

Origami mechanism:

1. Indentation adjustment: manual adjustment (with precision dial, more stable than pneumatic mechanism)

2. Double press knife configuration: double servo folding knife roller (designed according to the mechanism of similar products of German TAG, long-life indentation knife roller group is maintenance-free)

3. The press knife is made of integral craft five-axis machining center by integral carving and grinding, surface quenching and hardening electroplating hard chrome treatment, more wear-resistant, indentation rubber shaft adopts integral polyurethane rubber shaft for long-term use without wear and no need to replace

4. Servo system: 3 sets of Taiwan Teco, double set of press knife, traction

Folding mechanism：

1. Folding height: Touch screen input and stepper motor automatic adjustment

2. Conveying mode: continuous, inching (stepper motor control)

3. Conveying belt: polyurethane synchronous belt (not easy to slip and break)

4. Cooling: equipped with a two-meter-long non-powered cooling roller

Complete machine：

1. The main frame is made of 4080 thickened industrial aluminum profile

2. The sheet metal of the whole machine is made of 1.5mm processed cold-pressed plate sprayed with plastic

3. Complete machine electrical appliances: Taiwan TECO servo system, Japan Panasonic PLC, Schneider low-voltage electrical appliances

4. Pneumatic: Taiwan AirTac brand

Main parameters
