PUR hot melt adhesive machine is a highly efficient and precise hot melt adhesive equipment specially designed for processing PUR hot melt adhesive. PUR hot melt adhesive has extremely strong adhesion and excellent high temperature resistance, water resistance, chemical corrosion resistance and other characteristics after curing. It is often used in applications that require strong bonding, sealing and protection. PUR hot melt adhesive machine melts PUR adhesive through heating and extrusion system, and evenly applies it to the surface of the substrate through the nozzle to ensure bonding quality and efficiency.

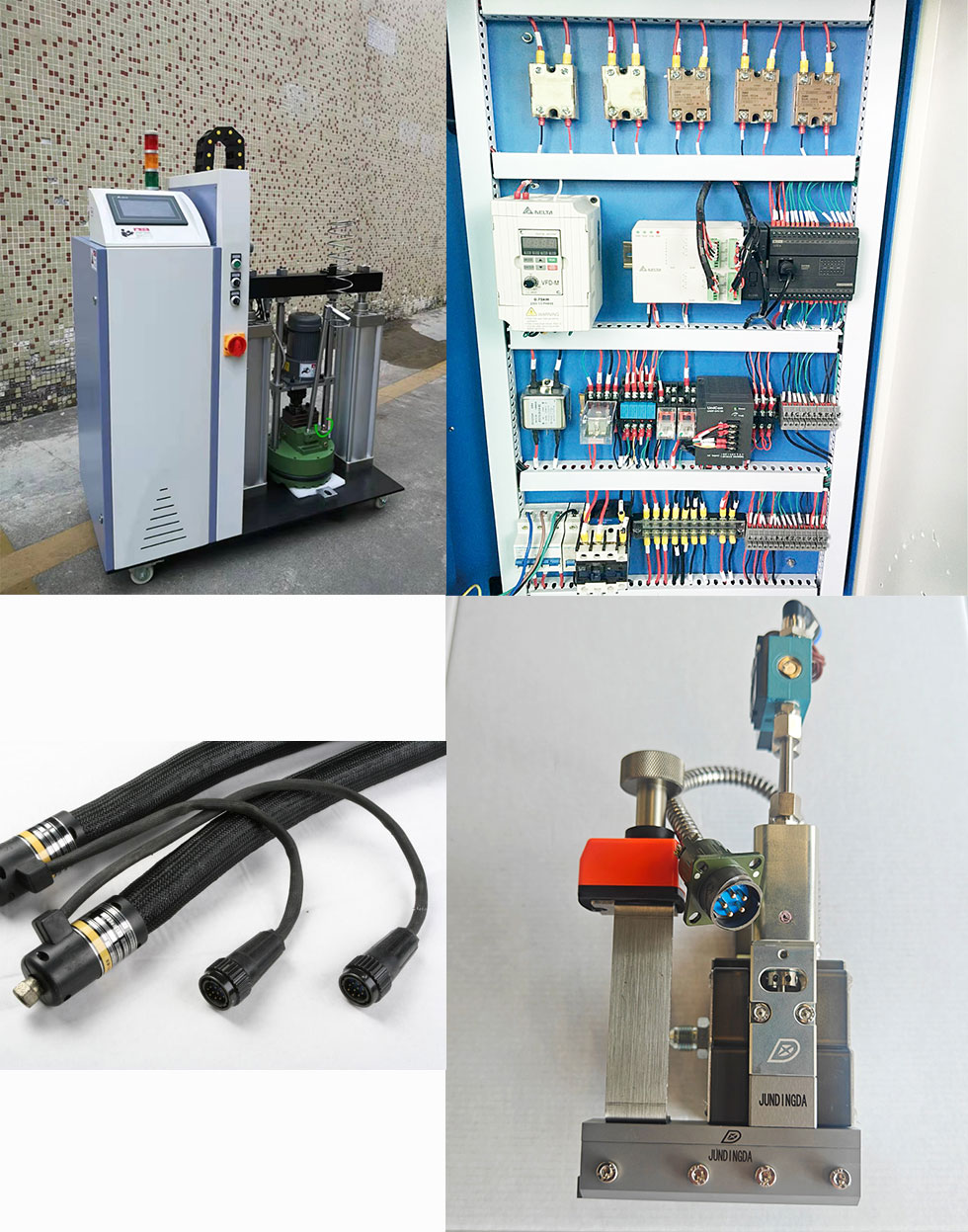

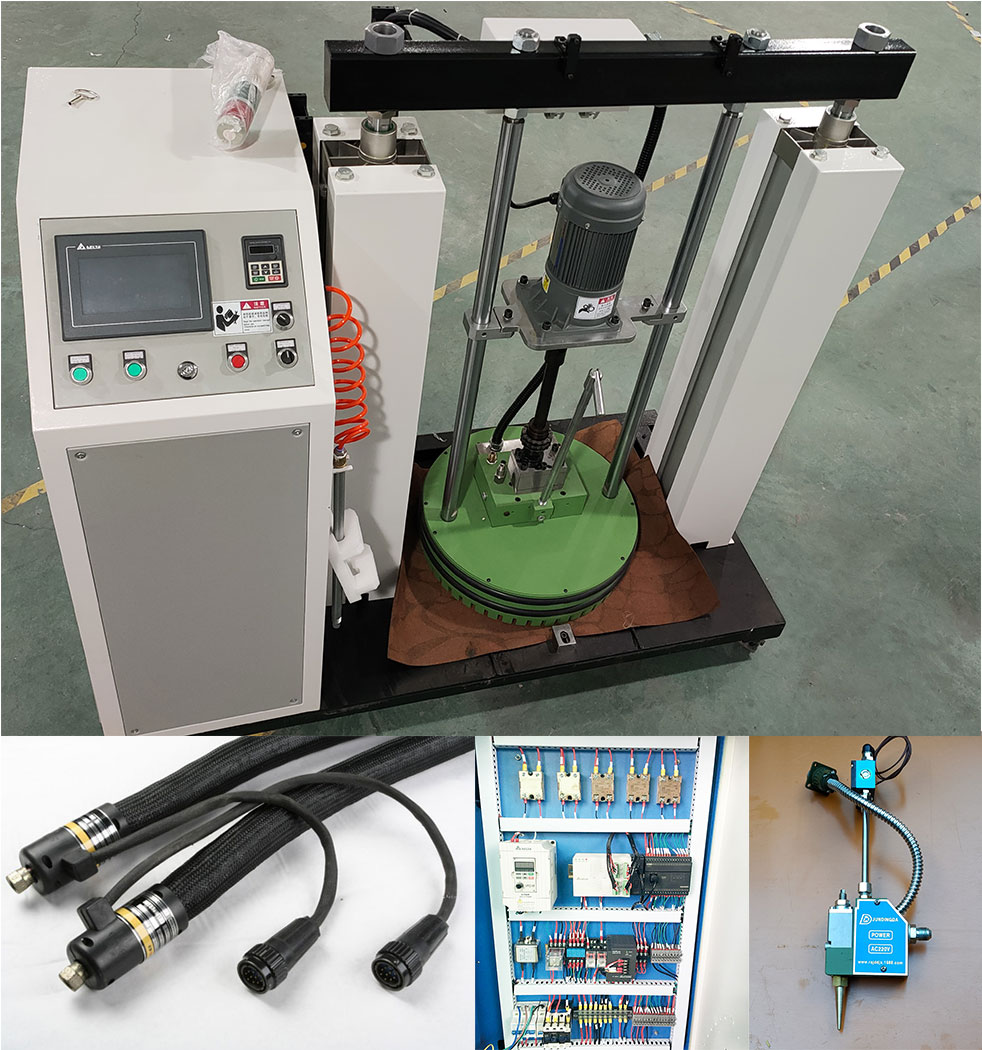

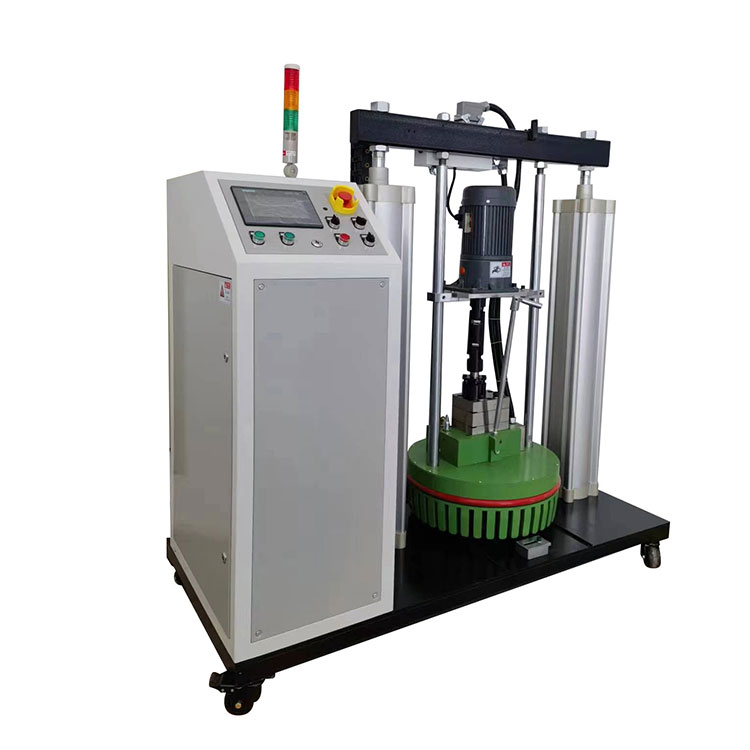

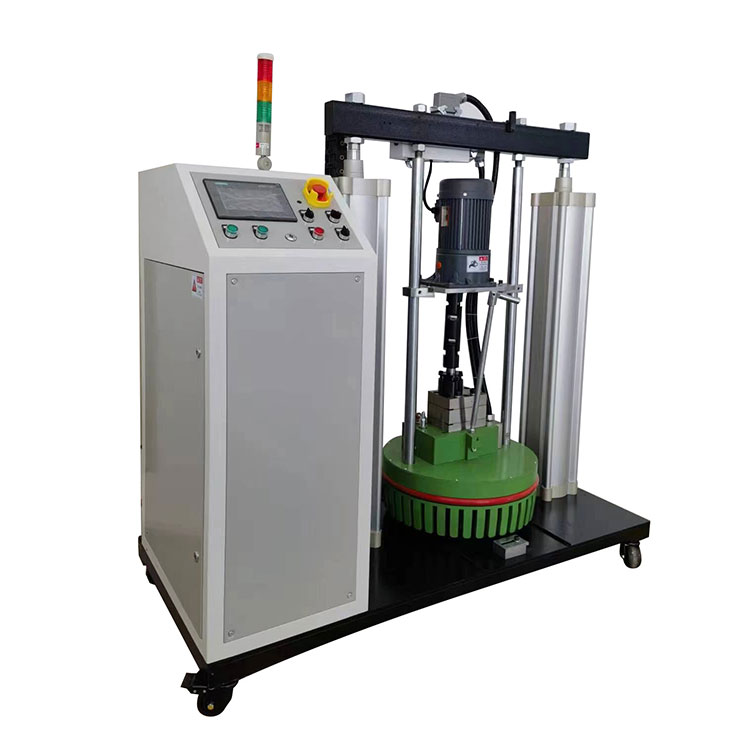

Model1：XD-PUR55gallon
|
The main technical parameters |
|
|
Application type |
Suitable for pur hot melt adhesive spraying. |
|
Model: |
XD-PUR55 gallon |
|
Glue outlet |
2-way |
|
Gear pump |
20cc (1 set) |
|
Maximum glue supply |
72KG/H (single gear pump Ruicheng Pump Industry) |
|
Melting speed |
70kg/h |
|
Control method |

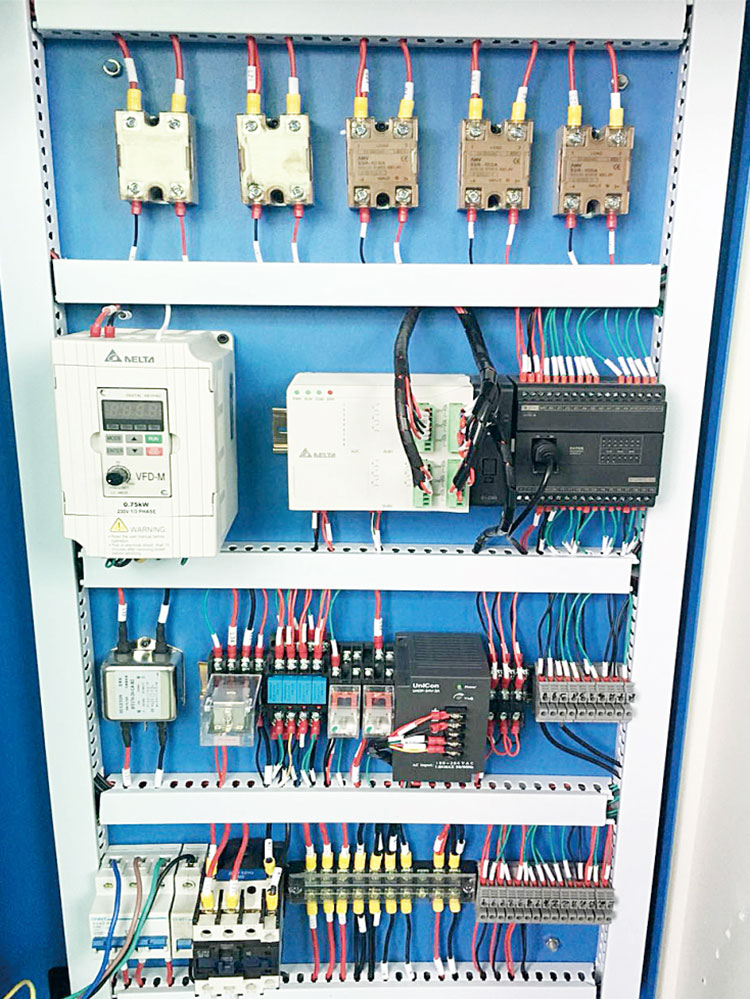

Delta PLC intelligent touch temperature control system 5-way temperature control |
|
Maximum motor rotation speed |
70rpm (750W Yuxin motor 1 set) |
|
Power supply |
3-phase AC-380V 10.5kw |
|
Melting cylinder size |
55 gallon glue barrel |
|
Speedregulation method |
Frequency conversion speed control drive glue pump control glue output |
|
Inverter (Tai'an) |
750W 1 set, including assembly line automatic signal interface |
|

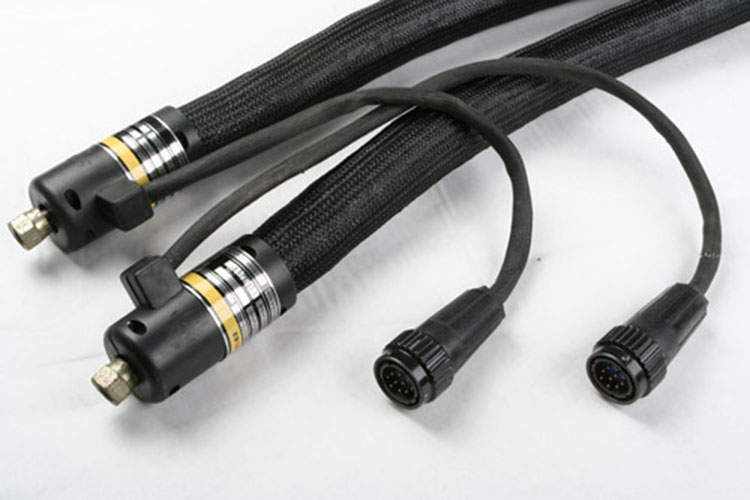

Glue hose |
5 meters 2 lines |
|
Glue gun |
2 sets |
The working principle of this machine: 1: PUR hot melt adhesive is melted in the melting tank and transported to the glue gun through the hose through the reflux constant pressure, and the glue is turned on and off by controlling the glue gun solenoid valve. The above products are 55,000 yuan including tax and freight, and the warranty period is 1 year

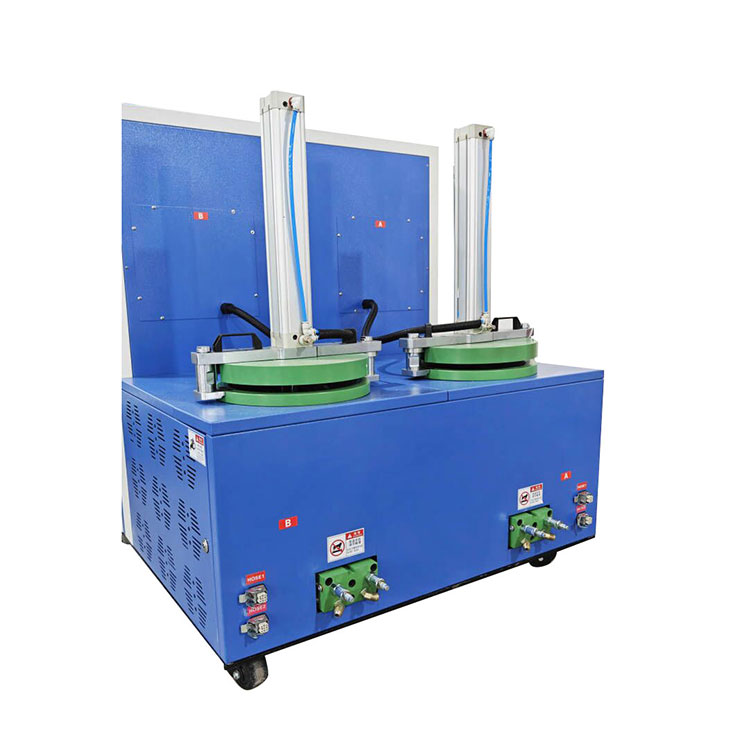

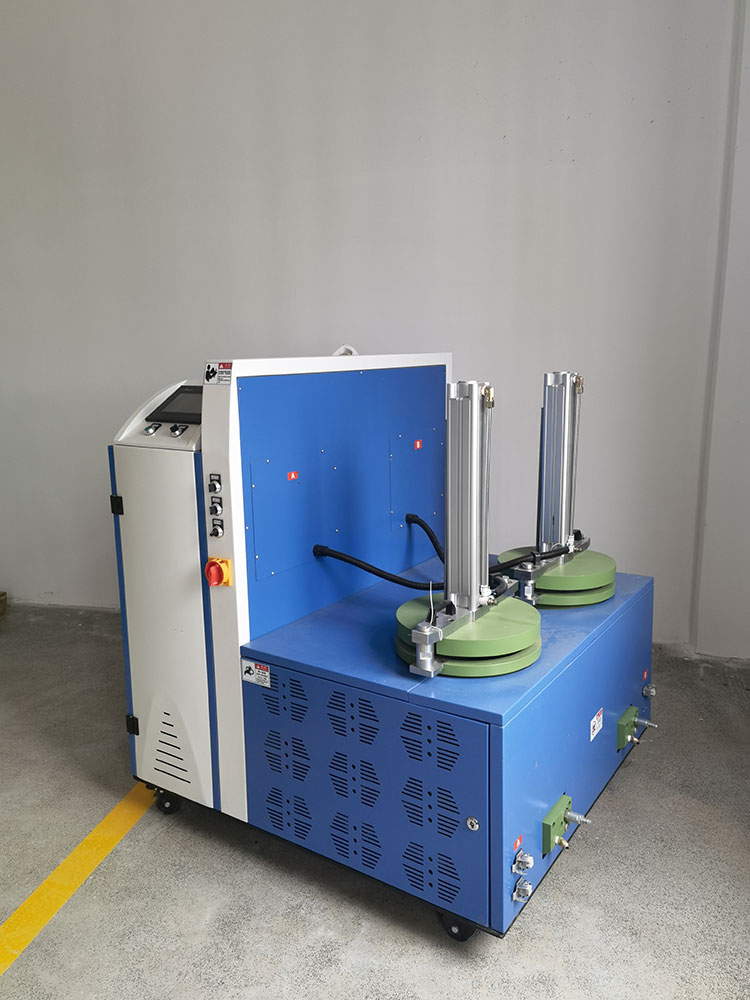

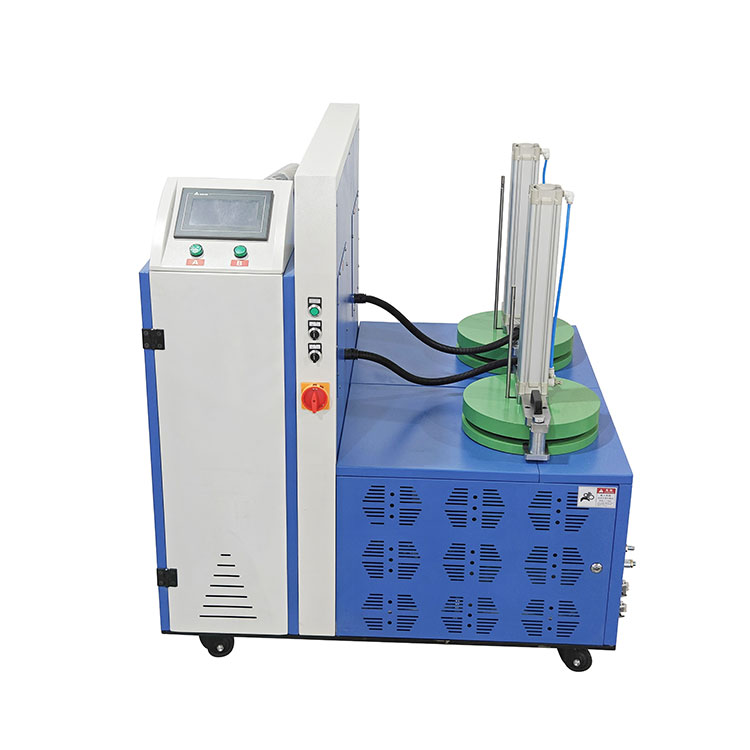

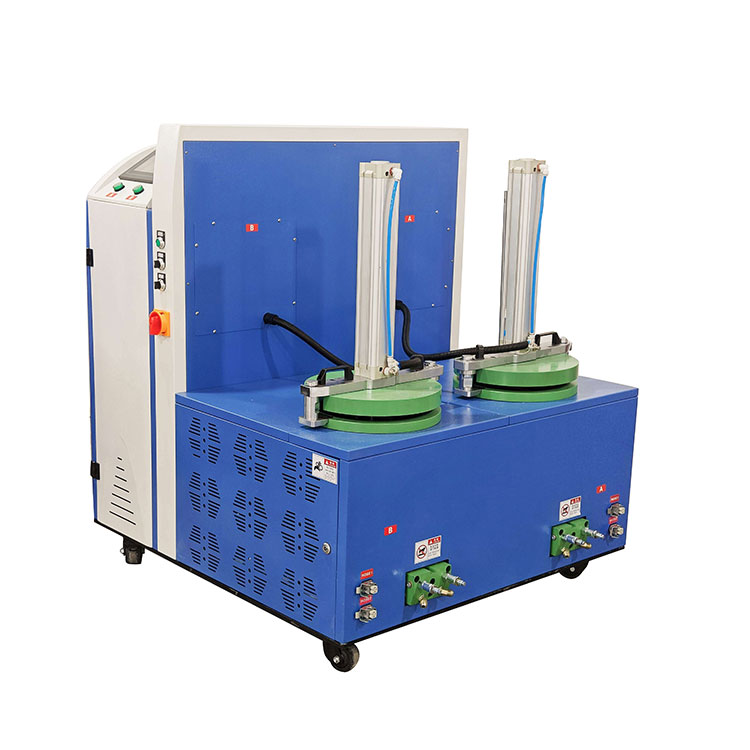

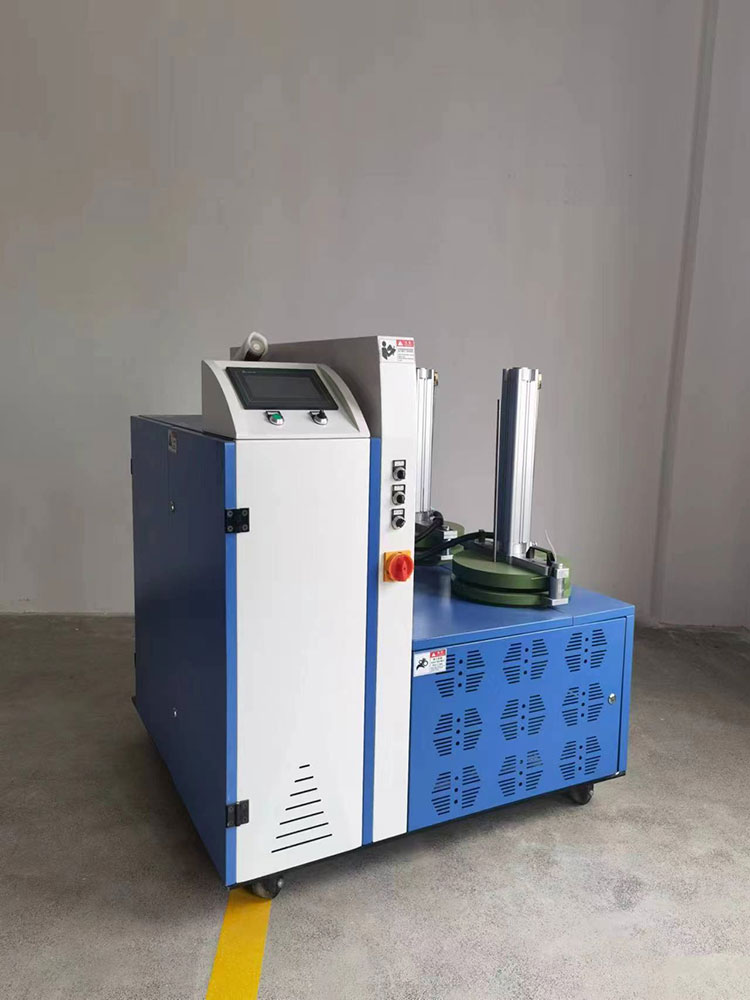

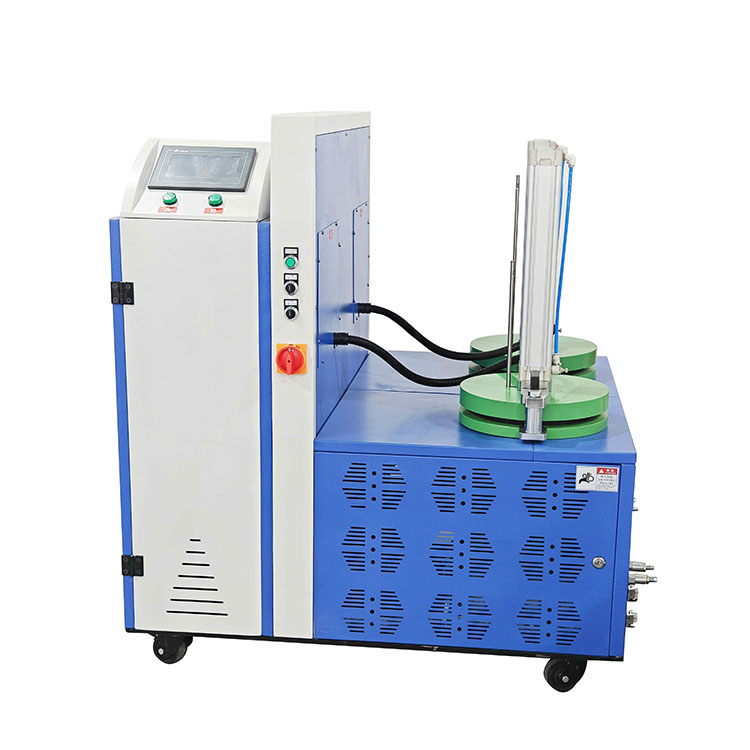

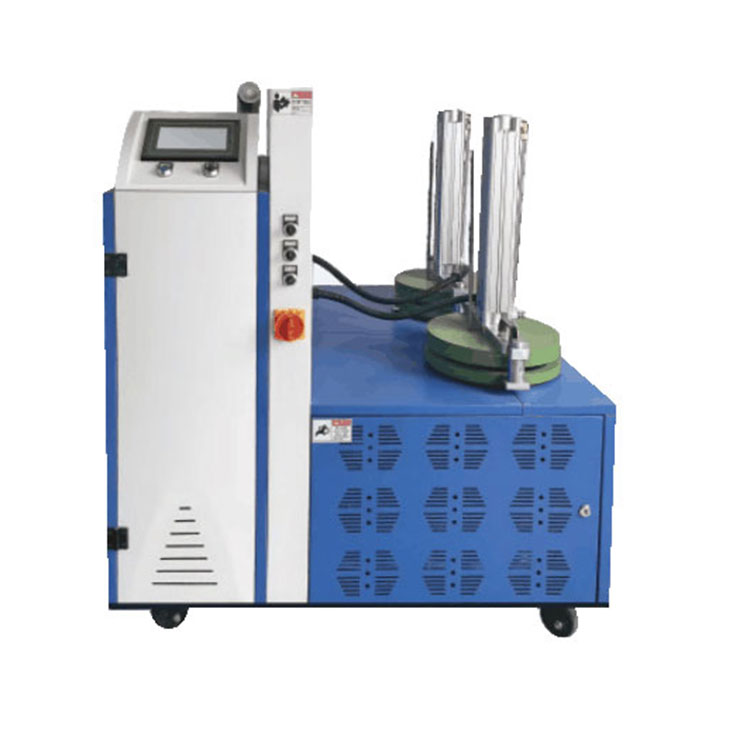

Model2：XD-2PUR5gallon
 |
 |
|
Double barrel pur glue machine |
4-way glue supply |
 |
 |
|
PLC controlled fiber |
spray gun |
|
The main technical parameters |
|
|
Application type |
Suitable for pur hot melt adhesive spraying. |
|
Model: |
XD-2PUR 5 gallon |
|
Glue outlet |
4-way |
|
Gear pump |
12cc (2 sets) |
|
Maximum glue supply |
30KG/H (single gear pump) |
|
Melting speed |
40kg/h (2-layer heating) |
|
Control method |
PLC intelligent touch temperature control system 9-way temperature control |
|
Maximum motor rotation speed |
70rpm (2 sets of 400W motors) |
|
Power supply |
3-phase AC-380V 7.5kw |
|
Melting cylinder size |
5-gallon double glue barrel |
|
Speedregulation method |
Frequency conversion speed control drive glue pump to control glue output |
|
Inverter (Tai'an) |
700W 2 sets, including assembly line automatic signal interface |
|
Hose |
3.5m 4m, 4.5m |
|
PUR spray gun |
3 sets 400mm |
|
|
|
The working principle of this machine: 1: PUR hot melt adhesive is melted in the melting cylinder and transported to the glue gun through the hose through the reflux constant pressure, and the switch glue is realized by controlling the solenoid valve switch.
The configuration is as follows: 2 sets of double barrel pressure plates with 5 gallons, 1 set of 1.2-meter fiber, and 3 hoses.
1. Carbon spreading width 1300mm, with 1 set of automatic feeder (including 1 powder spreading stick)
2. Negative pressure dust extraction under the carbon hopper (excluding external pipes)
3. Lower carbon transmission motor 1:30, 750w1 set including inverter (synchronous control with the main engine transmission)
4. Glue gun bracket 1 set (adjustable up and down, glue gun uses the glue gun of early equipment)
5. The overall structure adopts channel steel welding and baking paint
1. 6 sets of glue spraying system
2. 1 set of powder hopper 1.3 meters effective
3. The above is 720,000 yuan

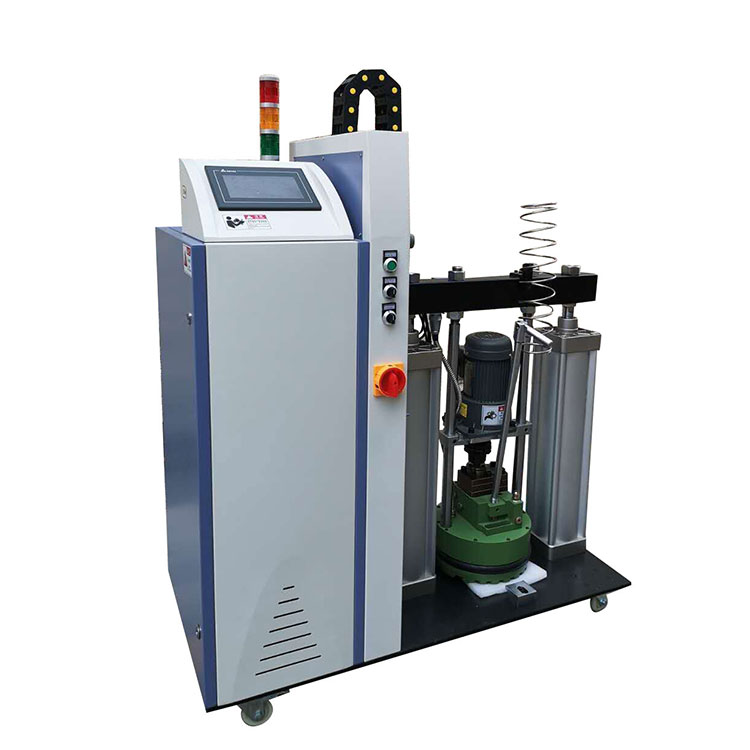

Model3：XD-PUR5gallon
High temperature Teflon feed pipe 5-70mm adjustable glue gun
|
The main technical parameters |
|
|
Application type |
Suitable for pur hot melt adhesive spraying. |
|
Model: |
XD-PUR5 gallon |
|
Glue outlet |
2-way |
|
Gear pump |
12cc (1 set) |
|
Maximum glue supply |
30KG/H (single gear pump) |
|
Melting speed |
40kg/h (2-layer heating) |
|
Control method |
PLC intelligent touch temperature control system 6-way temperature control |
|
Maximum motor rotation speed |
70rpm (400W motor 1 set) |
|
Power supply |
3-phase AC-380V 7.5kw |
|
Melting cylinder size |
5-gallon glue barrel |
|
Speedregulation method |
Frequency conversion speed control drive glue pump control glue output |
|
Inverter (Tai'an) |
700W 1 set, including assembly line automatic signal interface |
|
Hose |
4 meters 1 line |
|
Adjustable glue gun 5-70MM |
1 set |
The working principle of this machine: 1: PUR hot melt adhesive is melted in the melting cylinder and transported to the glue gun through the hose through the reflux constant pressure, and the spraying glue is realized by the switch of the solenoid valve
The above products include tax and freight 40,000
