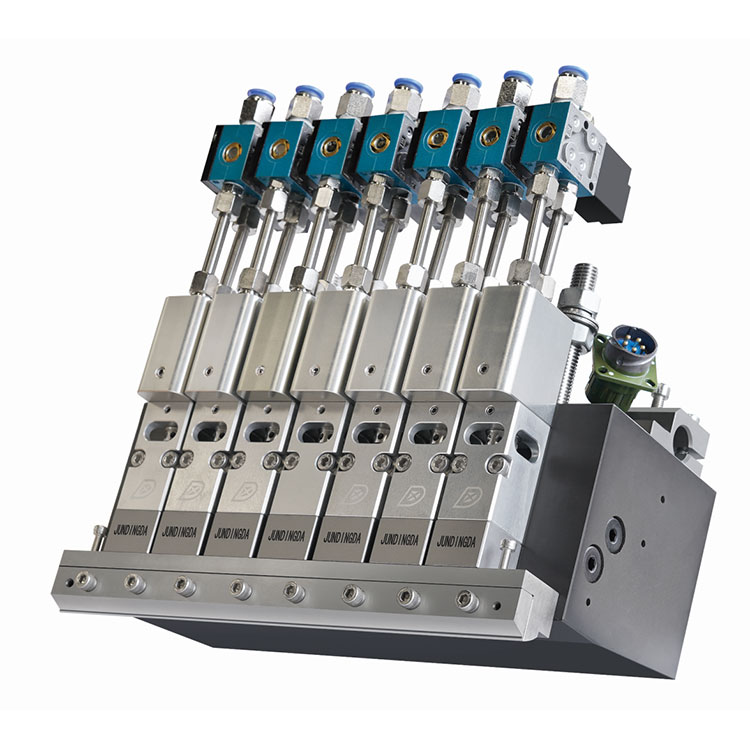

Reverse Dispensing Glue Coating Gun

Jundingda Machinery’s  Reverse Dispensing Glue Coating Gun is a type of adhesive dispensing tool designed for precise application of glue or coating materials. The term "reverse dispensing" typically refers to the method of applying the adhesive in the opposite direction compared to conventional dispensing guns.

1. The scraper is made of alloy material with a hardness of 60°, which is wear-resistant and has a long service life.

2. Large-flow gas-on-gas-off valves with multiple back-pumping bodies are scraped and coated independently. Each valve body is equipped with a MAC solenoid valve with a response frequency of 1600 times. The scraping lip hook angle can be used for high-speed glue coating without residue.

3. Working power supply AC220V, power 2600W, sensor type K, pt100, nickel 120 optional

4. Working air pressure 0.6mpa

5. Glue coating width 80-280mm, glue amount can be adjusted independently. It can realize overall glue coating or horizontal and vertical interval glue coating

(Application: high-end gift box assembly scraping, self-adhesive label coating, steam eye mask directional coating)

6. 120-mesh precision filtration system filters impurities in glue to reduce clogging
