Reverse Dispensing Glue Gun

The Reverse Dispensing Glue Gun offers improved efficiency, reduced adhesive waste, and superior control, making it the perfect tool for professionals who require precision in every application.

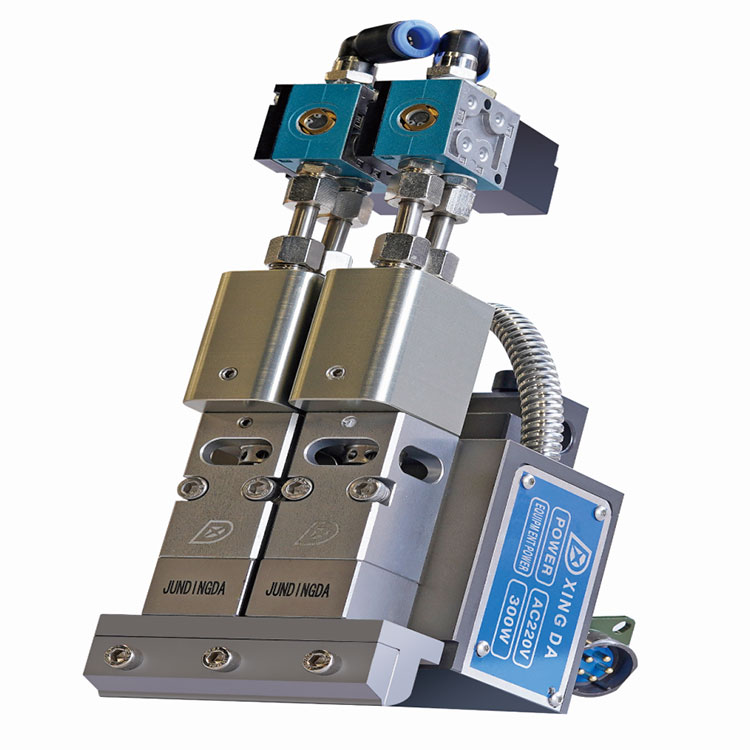

Model   XD-2FC80mm

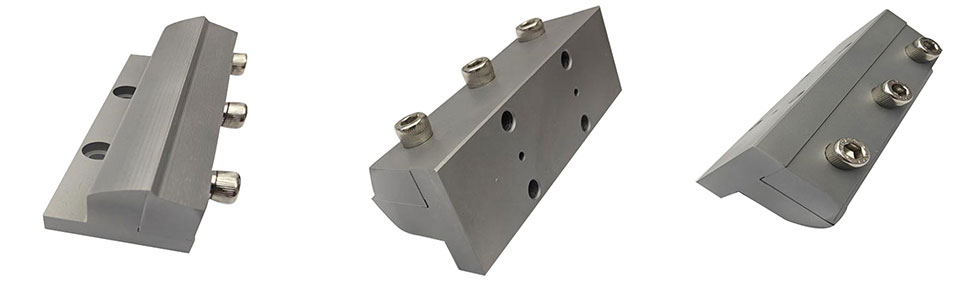

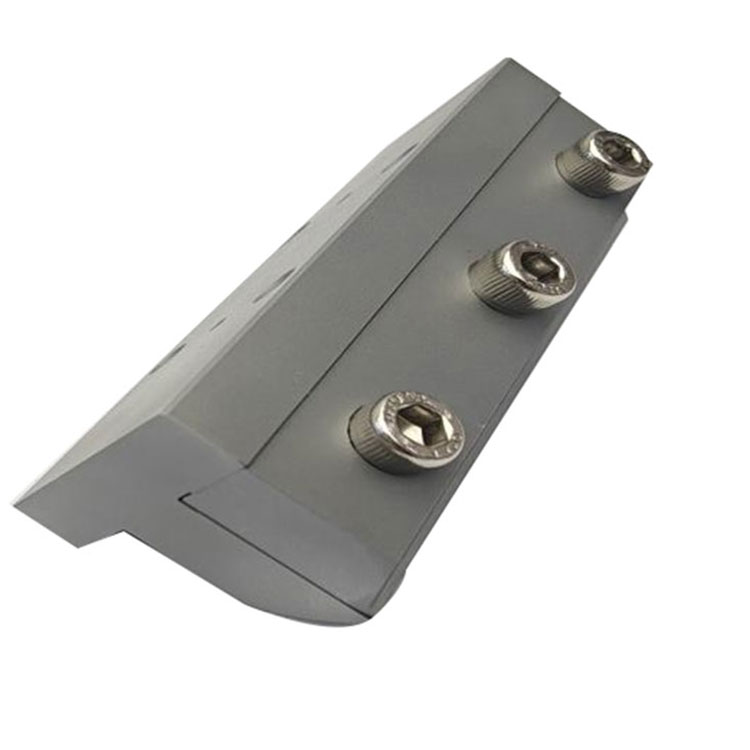

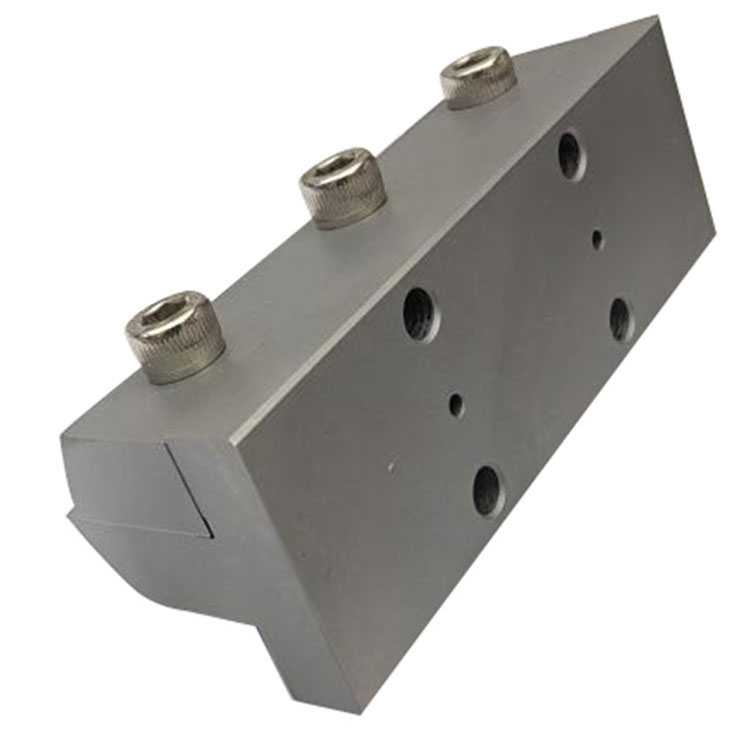

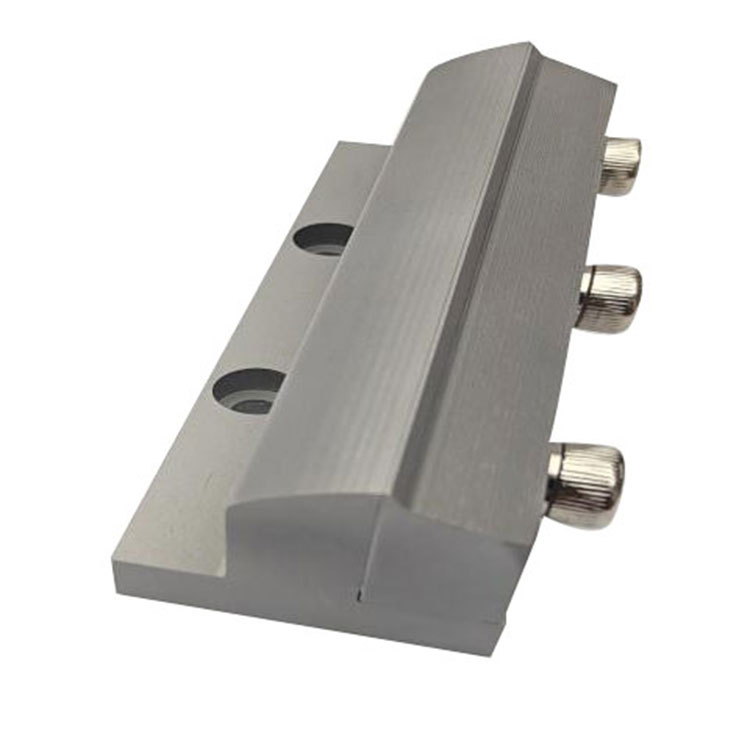

1. The scraper is made of alloy material with a hardness of 60°, which is wear-resistant and has a long service life.

2. Large flow air-on-air-off 2 back-pump valve body, equipped with 2 MAC solenoid valves, a response frequency of 1600 times, and high-speed glue coating at the scraping lip hook angle without residue.

3. Working power supply AC220V, power 600W, sensor K type, pt100, nickel 120 optional

4. Working air pressure 0.6mpa

5. Glue coating width 5-70mm, glue amount size is independently adjustable (suitable for 2 wings of sanitary products, bubble bag left and right release paper are independently glued)

6. 120 mesh precision filtration system filters impurities in glue and reduces clogging

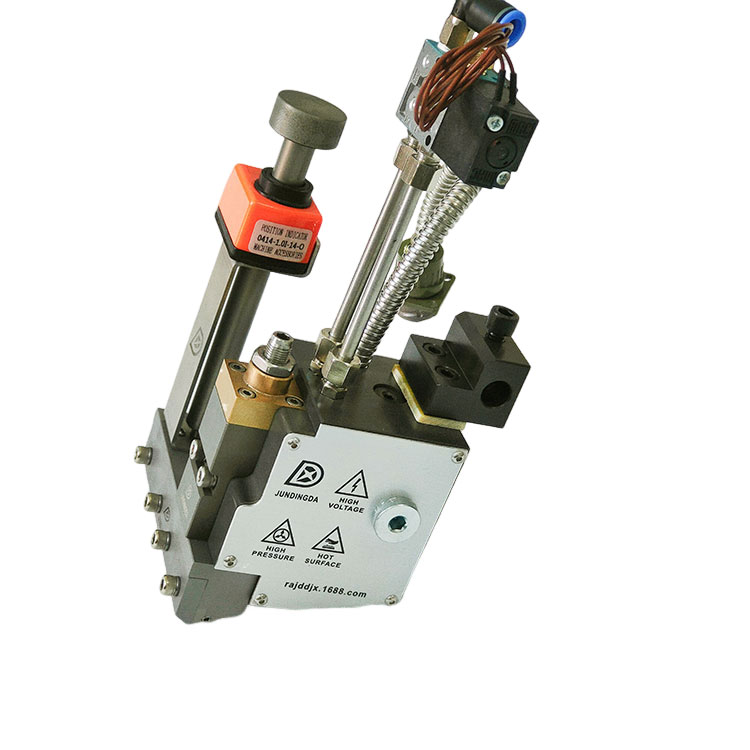

Model：XD-FC60mm

1. The scraper is made of alloy material with a hardness of 60°, which is wear-resistant and has a long service life.

2. The large-flow air-on-air-off anti-pump valve body is equipped with a response frequency of 1600 times of the MAC solenoid valve, and the scraper lip hook angle can apply glue at high speed without residue.

3. The working power supply is AC220V, the power is 400W, the sensor is K type, pt100, nickel 120 is optional

4. The working air pressure is 0.6mpa

5. The glue application width is 5-50mm, and the glue amount is adjustable (suitable for express bags, sanitary products, and various edge strips of filters)

6. The 120-mesh precision filtration system filters impurities in the glue and reduces clogging
