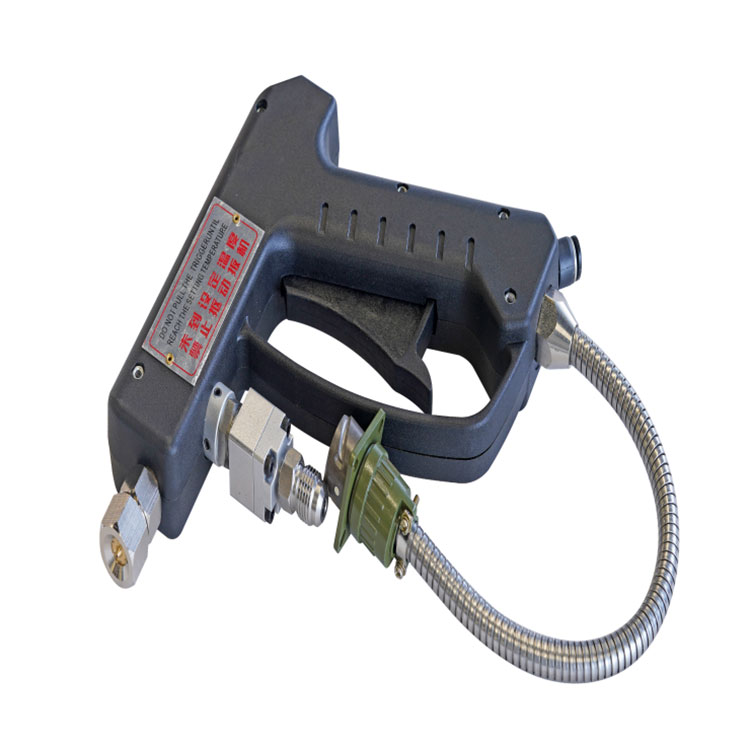

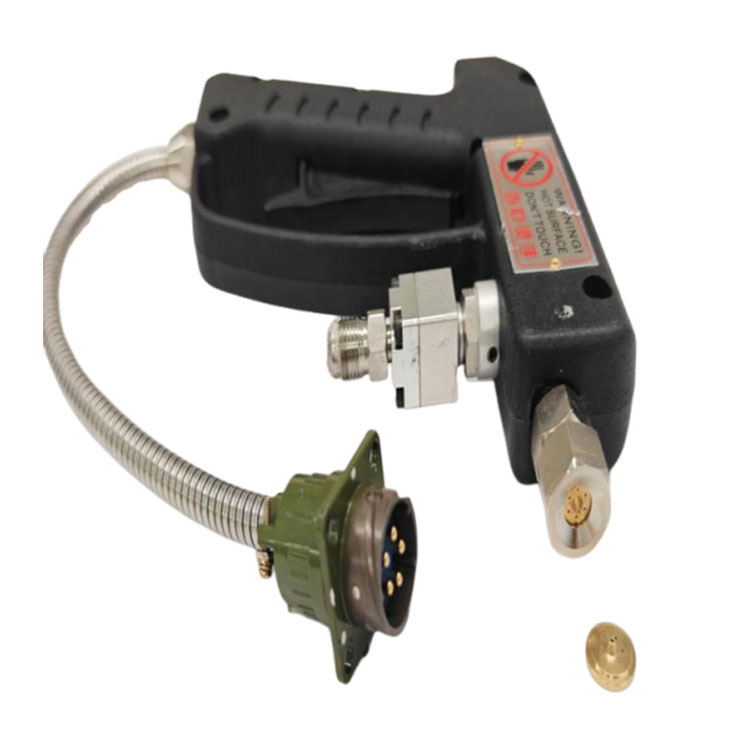

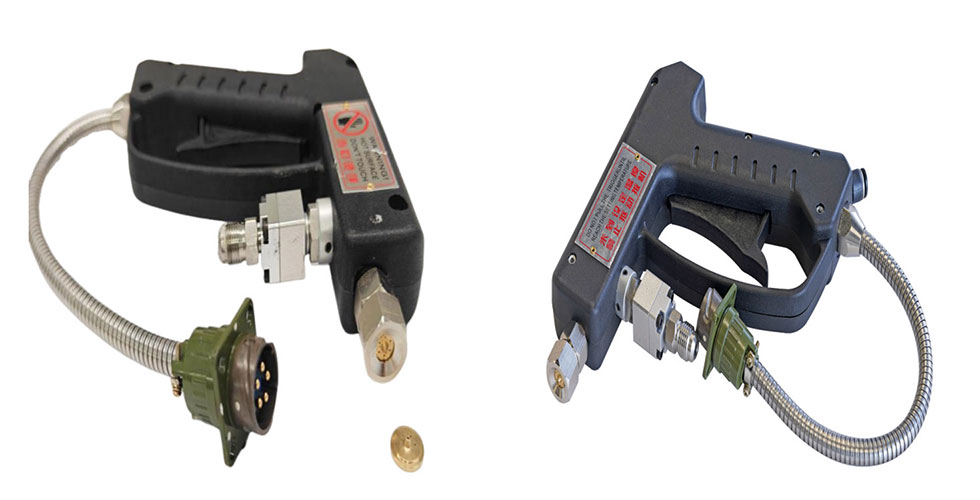

Manual Spiral Spray Gun

The high quality Manual Spiral Spray Gun made from Jundingda Machinety is the durable machine for professionals seeking precision, reliability, and control in their spraying tasks.

Manual spiral spray gun

Heating power supply AC-220V;

Power 150W;

Sensor K type pt100 or nickel 120 optional.

6-hole nozzle

Spraying width 20-120mm; Glue feeding method 2 structures up and down; Glue discharge method spiral spraying.

Main application

Spraying glue on special-shaped products, Simmons mattresses; Glue type: pressure-sensitive adhesive, polyolefin, pur hot melt adhesive.

Features of manual spiral spray gun:

1. Flexible operation and application, suitable for simple gluing and laminating;

2. Can provide nozzles with different specifications of 0.4~1.0MM aperture to solve the problem of uniform manual spraying;

3. Can flexibly adjust the glue spraying position according to product requirements, widely used in packaging, laminating, labeling, and other industries.

●The compact and lightweight manual spray gun provides a larger gluing range and working angle for manually operating hot melt adhesives, sealants and other types of hot melt adhesives;

●360-degree free-swivel joints prevent hose entanglement;

●RTD temperature sensor provides precise temperature control;

●Impact-proof cast housing prolongs service life;

●Non-heat handle design for comfortable operation;

●Operating temperature: 105-230℃; Working pressure: 1200PSI; Voltage requirement: 220V 50Hz

●The spray can be in the form of lines, dots, spirals or mist;

●Suitable for manual gluing and bonding operations such as carton (box) packaging, car lights, car interiors, furniture assembly, air conditioner/refrigerator assembly, non-woven products, etc.
