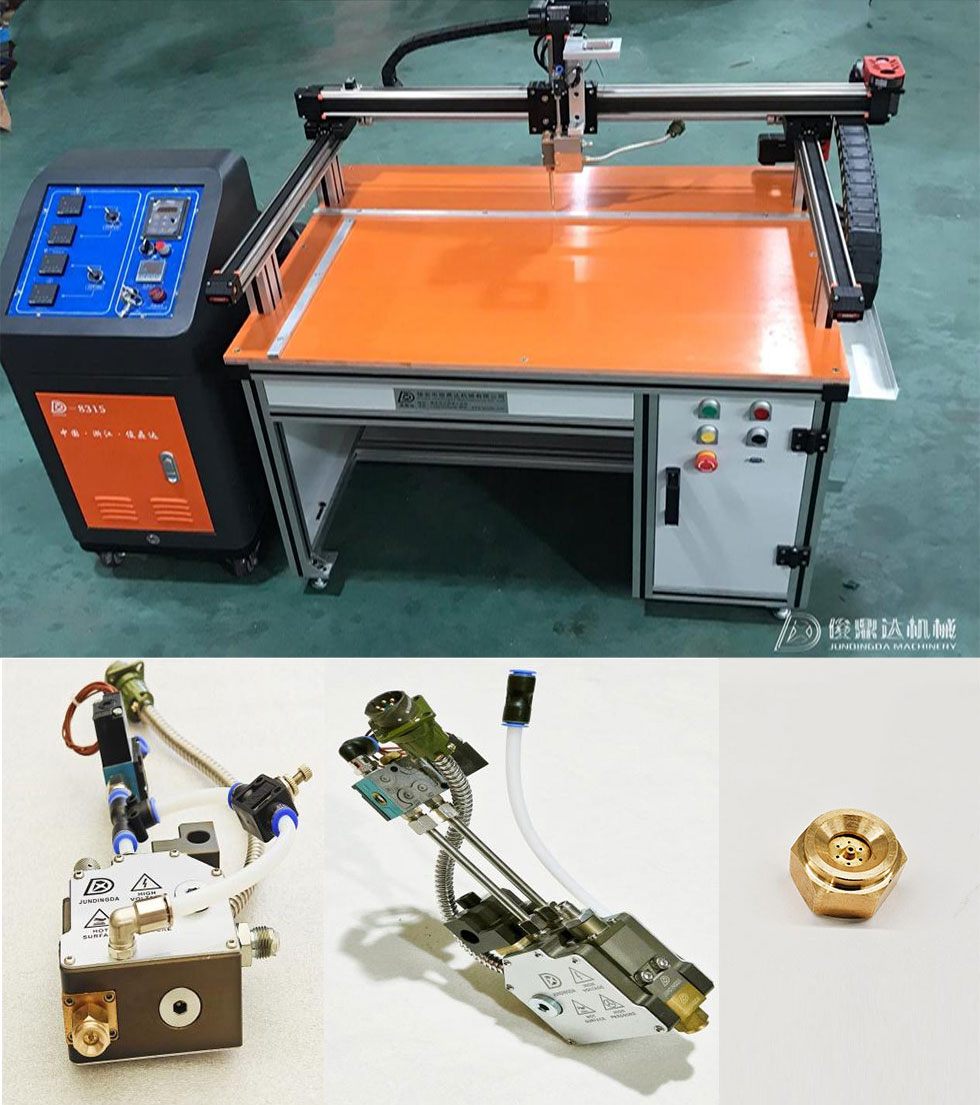

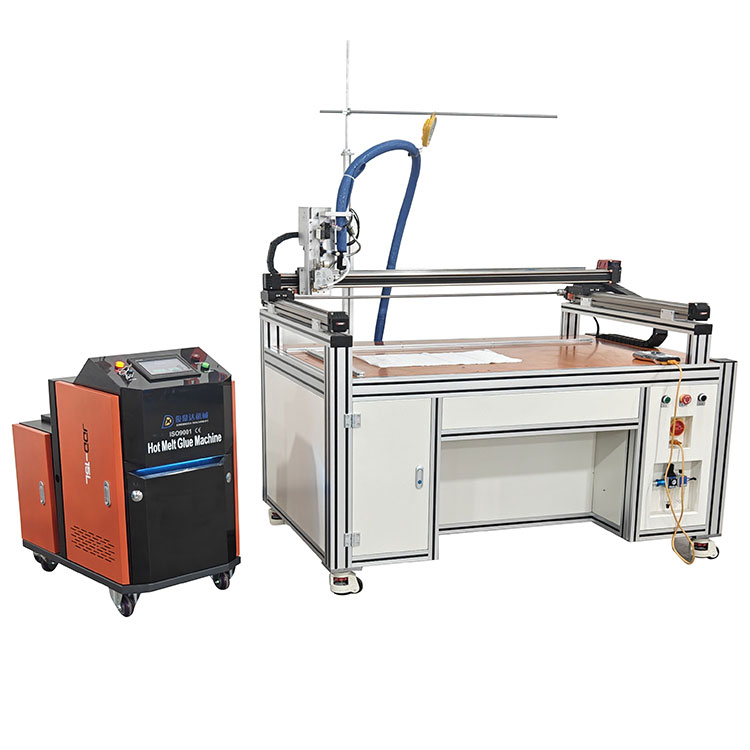

Three-Axis Dispensing Machine

The Three-Axis Dispensing Machine is a high-precision automated dispensing device that uses a three-axis (X, Y, Z) coordinate control system to accurately control the position, path and amount of glue during the dispensing process. The device is widely used in electronics, automobiles, medical, LED lighting, precision manufacturing and other industries for coating glue, sealants, inks and other materials, and is particularly suitable for applications that require high-precision dispensing.

Spiral spray gun

Main features:

1. Replace the manual dispensing operation to achieve automated production, simple, convenient, high-speed and accurate. 2. The program files are uploaded and downloaded through the U disk, which is convenient for data management and storage

3. The machine has needle control, no external teaching disk is required, and it is simpler and more convenient to debug than similar machines

4. CAD graphic recognition, simplified teaching, accurate trajectory

5. Using X, Y, Z three-axis linkage, any graphic can be glued once or multiple times.

Processing range :1200*800*130

Maximum speed:XYZ.600mm/s

Transmission mode : screw and synchronous belt

Motor system :Japanese micro stepping precision motor / servo

Power supply AC-220V

Size:1250X850X1200

Product model: XD-SZ1200*800*130 (three-axis travel)

I: Three-axis machine description:

1. Replace the manual dispensing operation to realize automated production, simple, convenient, high-speed and accurate, with an error of 0.1g.

2. The program file is uploaded and downloaded via a USB flash drive, which is convenient for data management and storage

3. The machine has needle control, no external teaching disk is required, and it is simpler and more convenient to debug than similar machines

4. CAD graphic recognition, simplified teaching, and accurate trajectory

5. Using X, Y, and Z three-axis linkage, any graphic can be glued once or multiple times. It can realize dot spraying, line glue, etc., and the size of the glue line is adjustable

Product details:

Travel range: 1200*800*130

Maximum speed: XYZ.800mm/s

Transmission mode: Hiwin screw guide rail

Servo system: Huichuan

Power supply AC-220V, power 5.5KW

Equipped with 4.5 meters of glue hose and 1 set of glue guns

The above products include tax and freight 55,000, delivery time 1 day
